Pinpoint Test JD: Crankshaft Position (CKP) Sensor: Introduction: Notes

This pinpoint test is intended to diagnose the following:

• CKP sensor (6C315)
• harness circuits: CKP(+) and CKP(-)
• powertrain control module (PCM) (12A650)

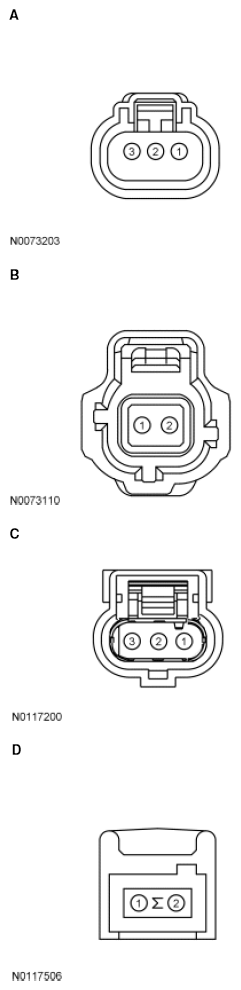

  Fig 1: Identifying Crankshaft Position (CKP) Sensor Connector (1 Of 2)

  Courtesy of FORD MOTOR CO.

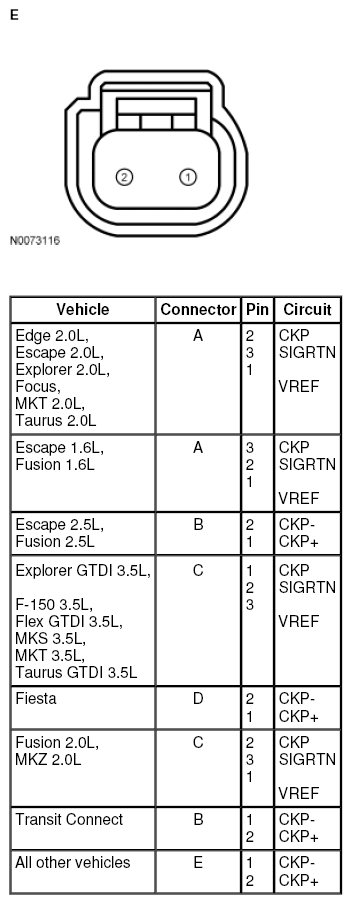

Fig 2: Identifying Crankshaft Position (CKP) Sensor Connector (2 Of 2)

Courtesy of FORD MOTOR CO.
