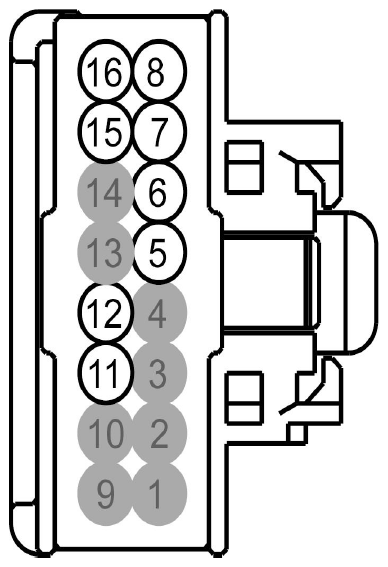

Overhead Console Switch Assembly Connector End View (C912)

Fig 1: Identifying Overhead Console Switch Assembly Connector (C912)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	GD138 (BK-WH)	22	GROUND - PILLAR A RIGHT	without roof opening panel
5	GD138 (BK)	22	GROUND - PILLAR A RIGHT	with roof opening panel
6	VLN30 (VT)	22	LIN 2 BUS
7	VLN30 (BU-WH)	22	CTRL MOD. - DIMMER INSTRUMENT
8	VLN30 (BN-GN)	22	FUSE OUTPUT OR CIRCUIT BREAKER
9	*	*	Not Used
10	*	*	Not Used
11	CPR31 (VT-BN)	22	SWITCH - MOON/SUN ROOF CLOSE
12	CPR40 (YE-OG)	22	SWITCH - MOON/SUN ROOF OPEN
13	*	*	Not Used
14	*	*	Not Used
15	VLN30 (BN-GN)	22	LIN - COURTESY LAMPS
16	VLN30 (BN-GN)	22	LED LAMPS POWER

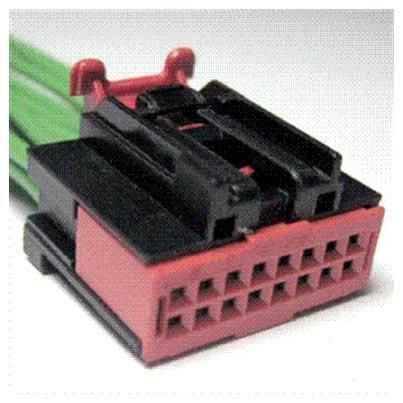

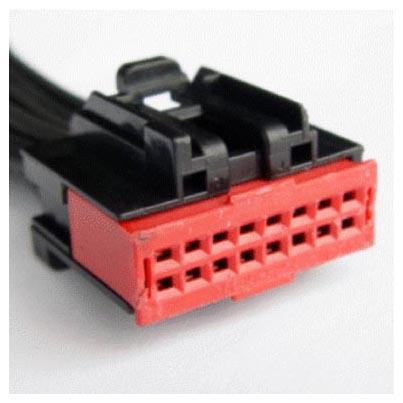

Available Pigtail Kits
Pigtail Kit Part Number WPT-1152	Service Part Number: 3U2Z-14S411-AJD  Gauge: 18  Pin material: Silver  Cavities: 16  Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console - Inline (Female) Switch - Multifunction
Pigtail Kit Part Number WPT-942	Service Part Number: 3U2Z-14S411-AJC  Gauge: 18  Pin material: Silver  Cavities: 16  Vehicle Uses Mirror - Sideview Mirror - Vanity Overhead Console - Inline (Female) Switch - Multifunction Switch - Multifunction (Turn)
Pigtail Kit Part Number WPT-201	Service Part Number: 3U2Z-14S411-AJA  Gauge: 20  Pin material: Tin  Cavities: 16  Vehicle Uses Connector - Inline Mirror - Sideview Switch - Multifunction
