Master Window Control Switch - Without Door Modules, With Rear Power Windows: Schematic

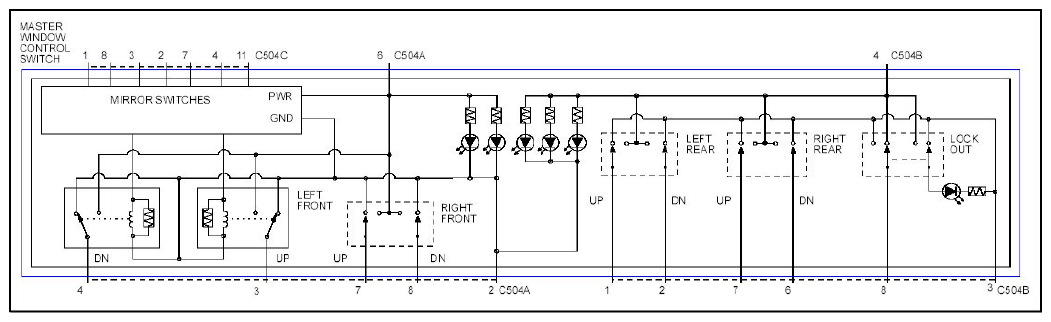

Fig 1: Master Window Control Switch - Without Door Modules, With Rear Power Windows Schematic
G08744447Courtesy of FORD MOTOR CO.
