Heated Oxygen Sensor-Front (HO2S-Front) Connector

The pin numbering for the connector is in reference to the connector lock tab. Not all connector key combinations are shown in illustration.

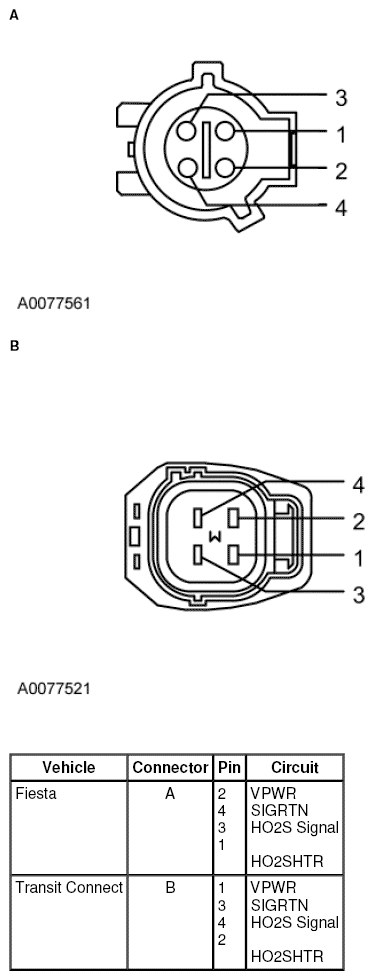

Fig 1: Identifying Heated Oxygen Sensor-Front (HO2S-Front) Connector
G08291493Courtesy of FORD MOTOR CO.
