Pinpoint Test HK: Variable Camshaft Timing (VCT): Introduction: Notes

This pinpoint test is intended to diagnose the following:

• VCT solenoid (6L713) or (6B297)
• spider assembly right bank (6C260) or left bank (6C261)
• harness circuits: VPWR and VCT
• powertrain control module (PCM) (12A650)

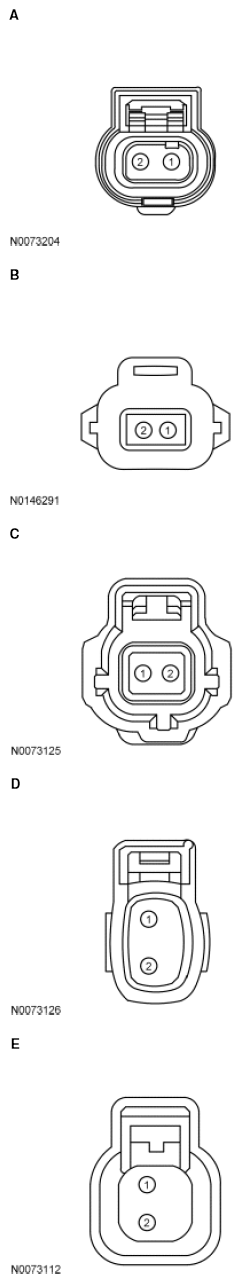

  Fig 1: Identifying Variable Camshaft Timing 11 (VCT11) Solenoid Connector (1 Of 2)

  Courtesy of FORD MOTOR CO.

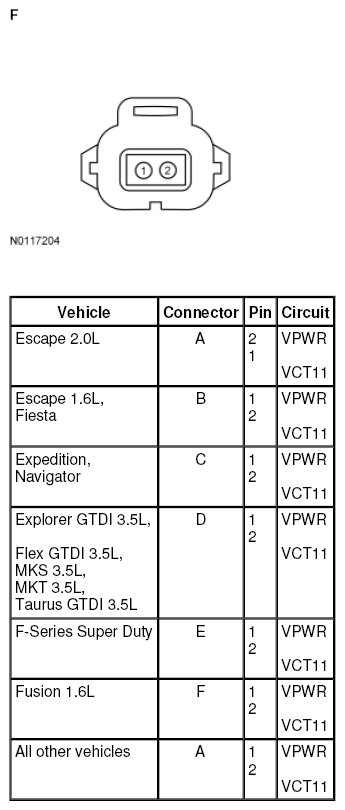

Fig 2: Identifying Variable Camshaft Timing 11 (VCT11) Solenoid Connector (2 Of 2)

Courtesy of FORD MOTOR CO.

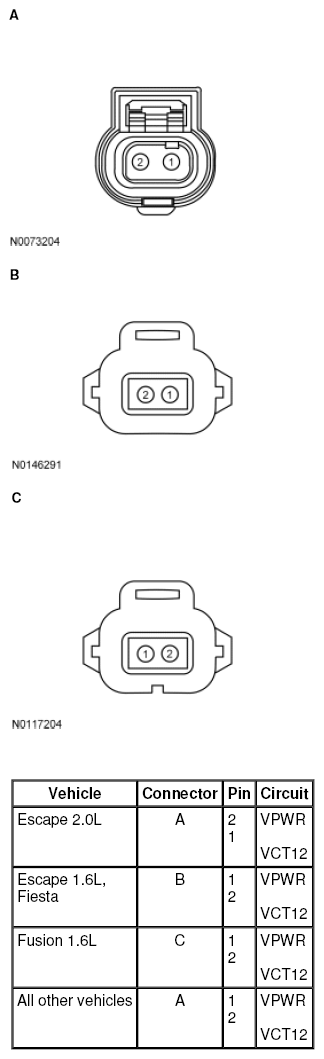

Fig 3: Identifying Variable Camshaft Timing 12 (VCT12) Solenoid Connector

Courtesy of FORD MOTOR CO.

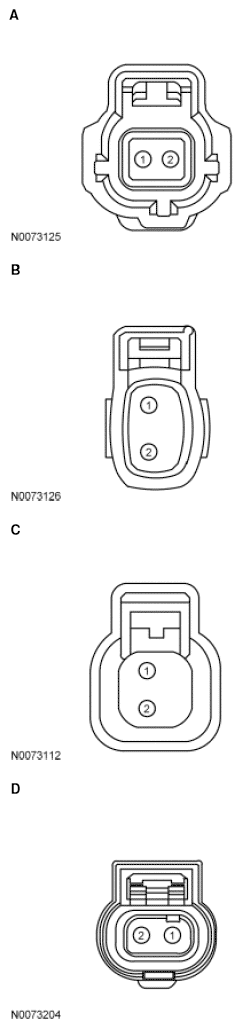

Fig 4: Identifying Variable Camshaft Timing 21 (VCT21) Solenoid Connector (1 Of 2)

Courtesy of FORD MOTOR CO.

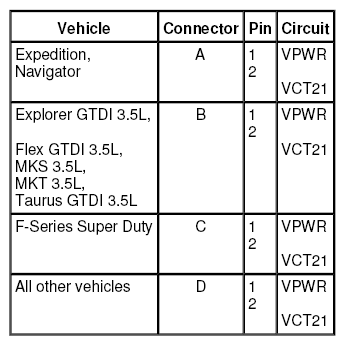

Fig 5: Identifying Variable Camshaft Timing 21 (VCT21) Solenoid Connector (2 Of 2)

Courtesy of FORD MOTOR CO.

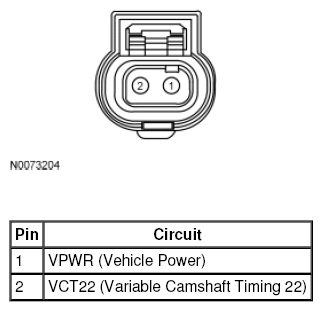

Fig 6: Identifying Variable Camshaft Timing 22 (VCT22) Solenoid Connector

Courtesy of FORD MOTOR CO.
