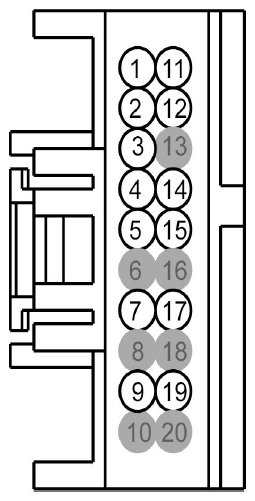

Audio Digital Signal Processing (DSP) Module Connector End View (C4326A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VDB13 (BU-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH | |
| 2 | VME09 (BN-GN) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR | |
| 3 | CME27 (YE-VT) | 22 | CTRL MOD. - AUDIO # ENABLE/CLIPPING | |
| 4 | VME12 (BN-WH) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR | |
| 5 | VME80 (VT-GN) | 20 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) | |
| 6 | * | * | Not Used | |
| 7 | VME07 (WH) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) | |
| 8 | * | * | Not Used | |
| 9 | VME10 (WH-VT) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) | |
| 10 | * | * | Not Used | |
| 11 | VDB14 (VT-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW | |
| 12 | RME09 (BN-YE) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR | |
| 13 | * | * | Not Used | |
| 14 | RME12 (BN-BU) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR | |
| 15 | RME80 (BU-GY) | 20 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) | |
| 16 | * | * | Not Used | |
| 17 | RME07 (WH-BN) | 22 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) | |
| 18 | * | * | Not Used | |
| 19 | RME10 (WH-OG) | 22 | CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) | |
| 20 | * | * | Not Used |
| Available Pigtail Kits | |
|---|---|

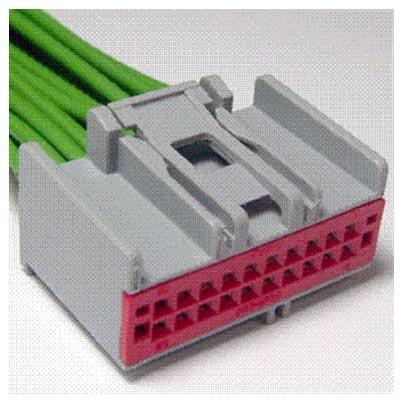

| Pigtail Kit Part Number WPT-1199 | Service Part Number: 3U2Z-14S411-FCB Gauge: 18 Pin material: Silver Cavities: 20 Vehicle Uses
|

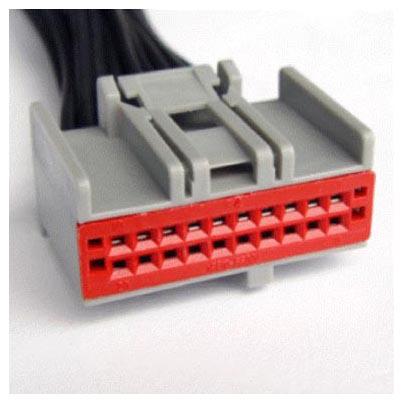

| Pigtail Kit Part Number WPT-255 | Service Part Number: 3U2Z-14S411-FCA Gauge: 18 Pin material: Tin Cavities: 20 Vehicle Uses
|
