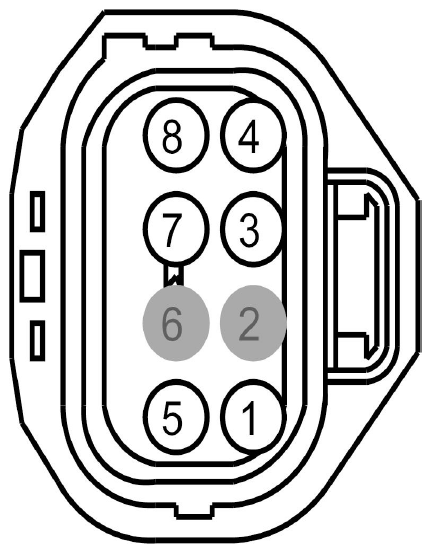

Fuel Pump Control Module (FPCM) Connector End View (C3239)

Fig 1: Identifying Fuel Pump Control Module Connector (C3239)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE225 (YE-BU)	12	FUEL PUMP RELAY - VPWR FUEL
2	*	*	Not Used
3	VE208 (WH)	18	CTRL MOD. - POWERTRAIN # FUEL PUMP CONTROL MODULE (FPCM) (FPC)
4	GD152 (BK-BU)	12	GROUND - PILLAR D RIGHT # 2ND STUD
5	VE225 (YE-OG)	12	CTRL MOD. - FUEL PUMP # FUEL PUMP (FP) ASSEMBLY (FPPWR)
6	*	*	Not Used
7	VE518 (BN-WH)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP CONTROL MODULE (FPCM) (FPM)
8	RE225 (BK-BU)	12	CTRL MOD. - FUEL PUMP # FUEL PUMP (FP) ASSEMBLY (FPRTN)

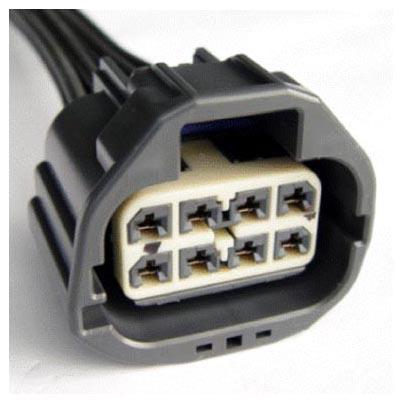

Available Pigtail Kits
Pigtail Kit Part Number WPT-521	Service Part Number: 3U2Z-14S411-TZA  Gauge: 12  Pin material: Tin  Cavities: 8  Vehicle Uses Fuel Pump/Sending Unit Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear Relay - Fuel Pump
