Power Steering Control Module (PSCM) Connector End View (C1463A)

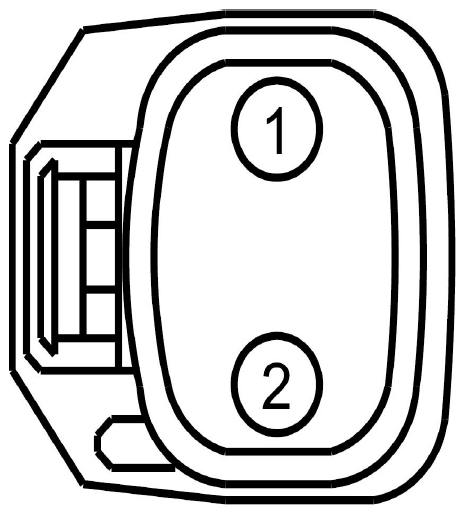

Fig 1: Identifying Power Steering Control Module Connector (C1463A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB03 (BU)	8	FUSE OUTPUT OR CIRCUIT BREAKER
2	GD120 (BK)	8	GROUND - FENDER FRONT LEFT
