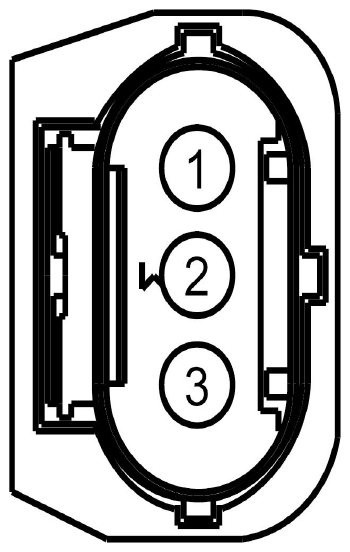

Power Steering Control Module (PSCM) Connector End View (C1463B)

Fig 1: Identifying Power Steering Control Module Connector (C1463B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
2	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
3	CBB44 (GN)	20	FUSE OUTPUT OR CIRCUIT BREAKER

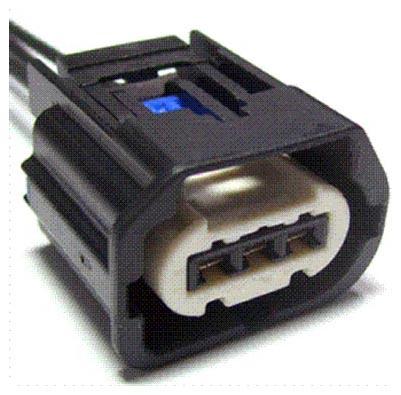

Available Pigtail Kits
Pigtail Kit Part Number WPT-1105	Service Part Number: AU2Z-14S411-APA  Gauge: 16  Pin material: Tin  Cavities: 3  Vehicle Uses Module - Power Steering
