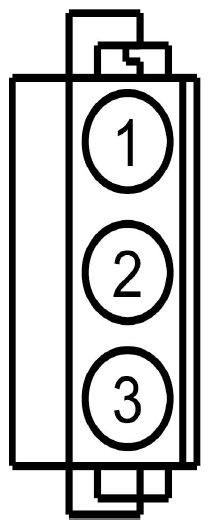

Remote Functions Receiver (RFR) Module Connector End View (C9026)

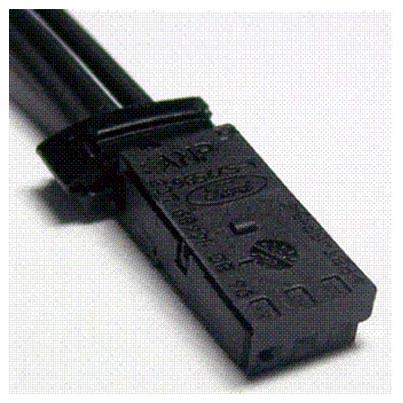

Fig 1: Identifying Remote Functions Receiver Module Connector (C9026)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VRT22 (GY-BN)	22	CTRL MOD. - PASSIVE ANTI THEFT TRANSCEIVER LIN BUS
2	GD138 (BK-WH)	20	GROUND - PILLAR A RIGHT
3	SBP21 (GY-RD)	22	FUSE OUTPUT OR CIRCUIT BREAKER

Available Pigtail Kits
Pigtail Kit Part Number WPT-1097	Service Part Number: AU2Z-14S411-ABA  Gauge: 18  Pin material: Tin (greased)  Cavities: 3  Vehicle Uses Module - Remote Functions Receiver
