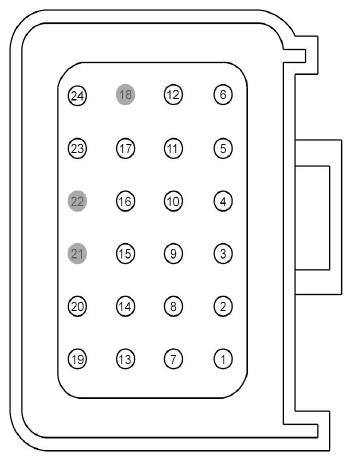

| 1 |
RR102 (WH) |
20 |
CTRL MOD. - AIR BAG DRIVER 2 RETURN |
|
| 2 |
CR102 (BU) |
20 |
CTRL MOD. - AIR BAG DRIVER 2 |
|
| 3 |
CR101 (VT-BN) |
20 |
CTRL MOD. - AIR BAG DRIVER 1 |
|
| 4 |
RR101 (YE-GN) |
20 |
CTRL MOD. - AIR BAG DRIVER 1 RETURN |
|
| 5 |
RR168 (BU-WH) |
20 |
CTRL MOD. - PYROTECHNIC STEERING COLUMN - |
|
| 6 |
CR168 (WH-GN) |
20 |
CTRL MOD. - PYROTECHNIC STEERING COLUMN + |
|
| 7 |
RR139 (YE) |
20 |
CTRL MOD. - AIR BAG DRIVER KNEE - |
|
| 8 |
CR139 (VT-WH) |
20 |
CTRL MOD. - AIR BAG DRIVER KNEE + |
|
| 9 |
CR103 (GY-BU) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 1 |
|
| 10 |
RR103 (VT-GN) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 1 RETURN |
|
| 11 |
RR104 (WH-BU) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 2 RETURN |
|
| 12 |
CR104 (YE-GY) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 2 |
|
| 13 |
RRP01 (VT-WH) |
20 |
LEFT FRONT IMPACT SENSOR RETURN |
|
| 14 |
VRP01 (WH-GN) |
20 |
LEFT FRONT IMPACT SENSOR FEED |
|
| 15 |
VRP02 (BN-VT) |
20 |
RIGHT FRONT IMPACT SENSOR FEED |
|
| 16 |
RRP02 (GN-BN) |
20 |
RIGHT FRONT IMPACT SENSOR RETURN |
|
| 17 |
CR116 (GN-WH) |
22 |
CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 20 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
CR115 (BN) |
22 |
EVENT NOTIFICATION SIGNAL (ENS) |
|
| 24 |
CBP02 (GN) |
20 |
FUSE OUTPUT OR CIRCUIT BREAKER |
|
