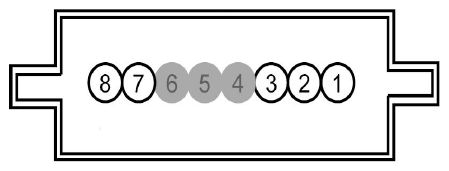

Steering Angle Sensor Module (SASM) Connector End View (C226B)

Fig 1: Identifying Steering Angle Sensor Module Connector (C226B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	TRIP SIGNAL
2	* (*)	*	DISPLAY SIGNAL
3	* (*)	*	DISPLAY/TRIP GROUND
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	* (*)	*	SWITCH - IP/SWITCH ILLUMINATION
8	* (*)	*	CRUISE SIGNAL 1
