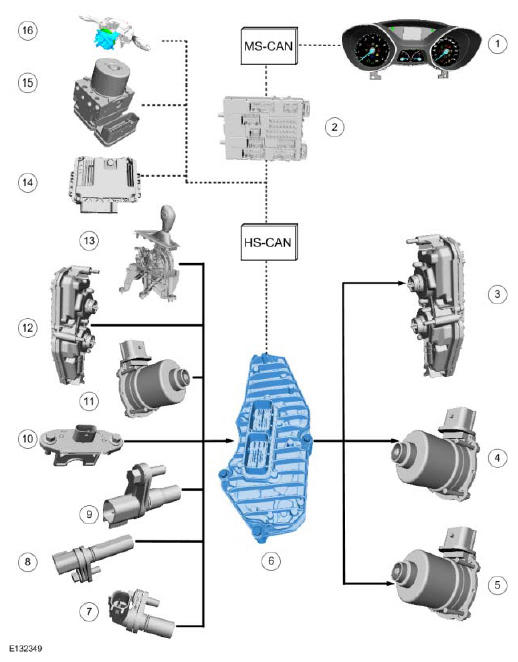

Flow chart
| Item | Description |
|---|---|
| 1 | Instrument Cluster |
| 2 | BCM |
| 3 | Electric shift motors in the TCM Comments: actuate the shift shafts |
| 4 | DC clutch actuator motor 1 |
| 5 | DC clutch actuator motor 2 |
| 6 | TCM |
| 7 | ISS sensor 1 of the input shaft (core shaft) Comments: Additional detection of the direction of rotation |
| 8 | ISS sensor 2 of the input shaft (hollow shaft) |
| 9 | OSS |
| 10 | The TR sensor |
| 11 | Hall sensors of the DC clutch actuator motor 1 and 2 |
| 12 | Hall sensors of the electric shift motors in the TCM |
| 13 | Select-shift switch |
| 14 | PCM |
| 15 | ABS |
| 16 | Steering wheel rotation sensor |
