System Diagram

WARNING: This page is about a different variant/trim than selected.

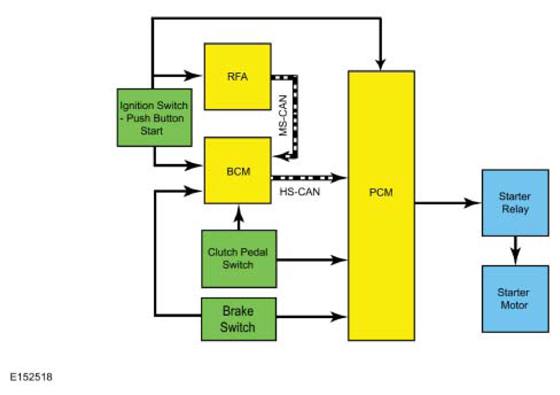

Fig 1: Starting System Communication Diagram
G08063905Courtesy of FORD MOTOR CO.
