Fuel Pump (FP) Relay Connector

The VPWR and FP circuits may be reversed in the harness connector. Refer to the Wiring Diagrams article for schematic and connector information.

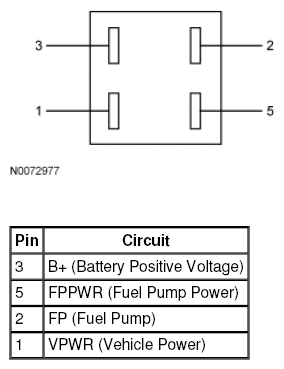

Fig 1: Identifying Fuel Pump (FP) Relay Connector

Courtesy of FORD MOTOR CO.

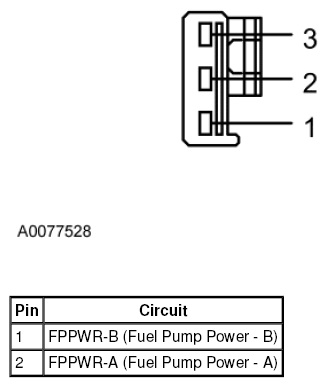

Fig 2: Identifying Inertia Fuel Shutoff (IFS) Switch Connector

Courtesy of FORD MOTOR CO.
