Pinpoint Test TA: Clutch Pedal Position (CPP) Switch: Introduction: Notes

This pinpoint test is intended to diagnose the following:

• CPP sensor
• CPP switch (11A152/7C534)
• harness circuits: CPP1, CPP2, CPP-BT, GND, SIGRTN, and VREF
• powertrain control module (PCM) (12A650)

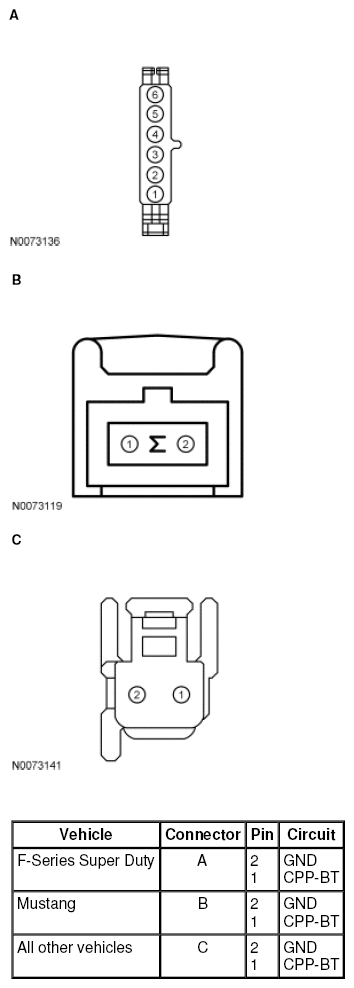

  Fig 1: Identifying Clutch Pedal Position (CPP) Sensor Connector

  Courtesy of FORD MOTOR CO.

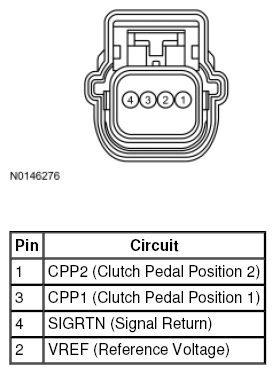

  Fig 2: Identifying Clutch Pedal Position (CPP) Switch Connector

  Courtesy of FORD MOTOR CO.
