Liftgate/DECKLID Release Switch/Lamp Assembly Connector End View (C4224)

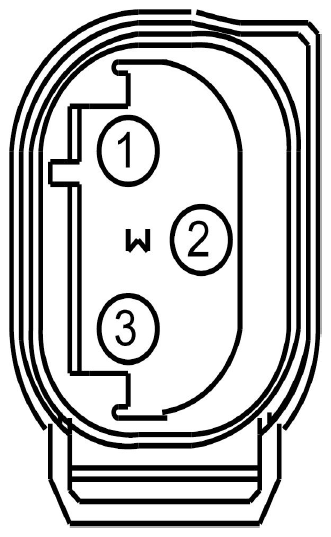

Fig 1: Identifying Liftgate/Decklid Release Switch/Lamp Assembly Connector (C4224)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD150 (BK-WH)	20	GROUND - PILLAR D LEFT # 2ND STUD
2	CPL45 (BK)	20	SWITCH - LIFTGATE/DECKLID RELEASE
2	CPL45 (BK)	22	SWITCH - LIFTGATE/DECKLID RELEASE	5 door with RVC
3	CLS04 (YE)	20	CTRL MOD. - LICENSE PLATE	5 door with RVC
3	CLS04 (BK)	18	CTRL MOD. - LICENSE PLATE

Available Pigtail Kits

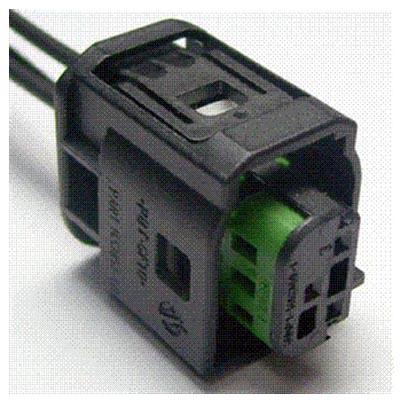

Pigtail Kit Part Number WPT-223	Service Part Number: 3U2Z-14S411-DSA  Gauge: 18  Pin material: Tin  Cavities: 3  Vehicle Uses Sensor - Reverse Park Aide (RPA)

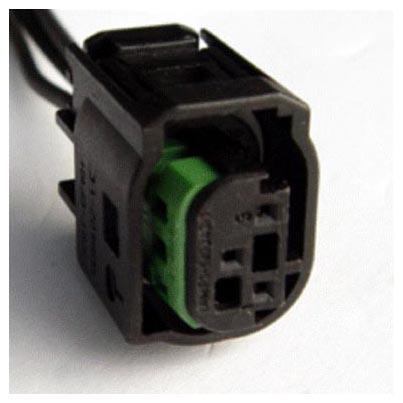

Pigtail Kit Part Number WPT-1289	Service Part Number: 8U2Z-14S411-RB  Gauge: 20  Pin material: Tin (greased)  Cavities: 3  Vehicle Uses Lamp - License Sensor - Brake Booster Travel Sensor - Fuel Rail Pressure Sensor - Fuel Tank Pressure Transducer Sensor - Reverse Park Aide (RPA) Sensor - Yaw Switch - Courtesy Lamp - Liftgate

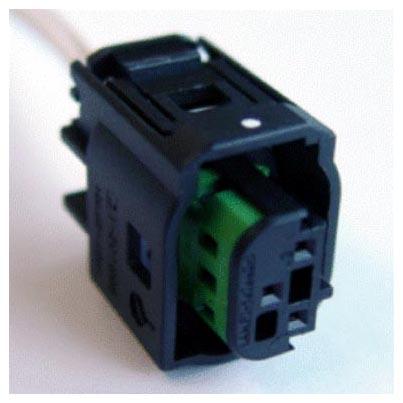

Pigtail Kit Part Number WPT-796	Service Part Number: 3U2Z-14S411-FLAA  Gauge: 18  Pin material: Gold  Cavities: 3  Vehicle Uses Sensor - Yaw
