5.8L 4V Mustang

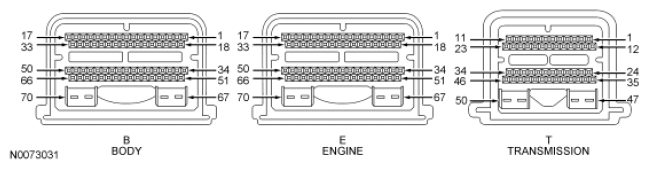

Fig 1: Identifying PCM Connector - 190 Pin (5.8L 4V Mustang)
G08291577Courtesy of FORD MOTOR CO.
SENSORS/INPUTS - 5.8L 4V MUSTANG

Sensors/Inputs PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
BOO1 B13 OFF OFF OFF OFF ON/OFF
FPM2 B25 60.25 59.61 59.71 60.25 %
APP2 B29 0.41 0.41 0.56 0.57 VOLTS
FPM B32 59.61 60.25 58.67 60.35 %
IAT2 B36 73 (163.40) 66.04 (150.88) 53 (127.40) 49 (120.20) DEG C (DEG F)
MAF B40 2.82 5.52 17.22 10.80 g/s
MAF_HZ B40 0.73 1.50 2.68 2.18 kHz
BOO2 B46 OFF OFF OFF OFF ON/OFF
IAT B47 1.84/48 (118.40) 1.93/46 (114.80) 2.91/26 (78.80) 3.01/24 (75.20) VOLTS/DEG C (DEG F)
B+ B62 12.94 14.09 14.12 14.19 VOLTS
FTP B65 2.65/0 (0) 2.59/0 (0) 1.82/-1.38 (-0.20) 2.35/-0.55 (-0.08) VOLTS/kPa (PSI)
FTP_H2O B65 0.21 -0.24 -5.59 -2.28 in-H 2 O
KNOCK_1 E7 0 299 578 964 N/A
TP2 E10 1.23/24.7 0.67/13.33 0.88/17.64 1.21/23.92 VOLTS/%
DPFEGR E21 0.54 0.54 0.64 1.28 VOLTS
FRP E23 3.94/416.44 (60.40) 3.13/316.88 (45.96) 3.50/361.70 (52.46) 3..41/351.01 (50.91) VOLTS/kPa (PSI)
FRT E26 1.58/54 (129.20) 1.56/55 (131) 1.26/63 (145.40) 1.22/64 (147.20) VOLTS/DEG C (DEG F)
CHT E30 95 (203) 90 (194) 101 (213.80) 95 (203) VOLTS/DEG C (DEG F)
TP1 E39 4.10/17.64 4.34/12.94 4.24/14.90 4.08/18.03 VOLTS/%
SCIP E40 100.94 (14.64) 27.99 (4.06) 25.99 (3.77) 29.99 (4.35) kPa (PSI)
SCIP_V E40 4.32 1.08 1.01 1.17 VOLTS
KNOCK_2 E45 0 411 487 652 N/A
O2S11_CUR T4 (I) switching (C) switching (C) switching (C) uA
O2S12 T18 0.02 0.12 0.80 0.76 VOLTS
CPP_BOT T19 NO NO NO NO YES/NO
O2S22 T27 0.02 0.14 0.81 0.77 VOLTS
OSS_SRC T36 0 0 1224.25 2160 RPM
O2S21_CUR T39 (I) switching (C) switching (C) switching (C) uA
HTRCM12 T47 0 762 722 722 mA
HTRCM22 T49 0 795 741 741 mA
AC_REQ PID NO NO NO NO YES/NO
APP PID 0 0 7 9 %
APP_MAXDIFF PID 0 0 0 0 DEG
APP_MODE PID NO PEDAL NO PEDAL PART PEDAL PART PEDAL NO PEDAL/PART PEDAL
APP1 (APP_D) PID 16.47 16.07 22.35 22.35 %
APP2 (APP_E) PID 8.23 7.84 10.98 11.37 %
BARO PID 99.97 (14.50)/157.02/401.46 98.94 (14.35)/156.11/397..44 99.97 (14.50)/157.02/401.46 99.97 (14.50)/157.02/401.46 kPa (PSI)/Hz/in-H 2 O
BRKOVR_ACTION PID 0 0 0 0 NUMERIC VALUE
BRKOVRD_POSS PID 0 0 0 0 NUMERIC VALUE
DECHOKE PID YES NO NO NO YES/NO
DIST_BRKOVRD PID 255.89 (159) 255.89 (159) 255.89 (159) 257.88 (160.24) KM (MILES)
EONV_RDY PID NOT READY NOT READY NOT READY NOT READY READY/NOT READY
EQ_RAT11 PID 0/0:1 0/0:1 0.80/12.04:1 0.99/14.46:1 RATIO
EQ_RAT21 PID 0/0:1 0/0:1 0.82/11.95:1 1.01/14.80:1 NUMERIC VALUE/RATIO
ETC_ACT PID 7.17 1.79 3.36 4.73 DEG
ETC_TRIM PID -0.26 -0.26 -0.27 -0.27 DEG
EVAPSOAK PID NO NO NO NO YES/NO
FLI PID 41.17 41.17 38.43 40 %
IACKAM2 PID -0.20 -0.05 -0.04 -0.04 NUMERIC VALUE
INJPWR_M PID 12.86 14.06 14.06 14.06 VOLTS
LOAD PID 0 14.51 14.51 14.90 %
MIL_DIS PID 0 (0) 0 (0) 0 (0) 0 (0) KM (MILES)
MISFIRE PID NO NO NO NO YES/NO
MP_LRN PID YES YES YES YES YES/NO
NUM_MISFIRE PID 0 2 32 30 COUNT
O2S11_IMPED PID 4.99 0.98 0.97 0.97 VOLTS
O2S11_READY PID NO YES YES YES YES/NO
O2S11_TR PID 0 0 0 0 Kohm
O2S21_IMPED PID 4.98 0.96 0.97 0.97 VOLTS
O2S21_READY PID NO YES YES YES YES/NO
O2S21_TR PID 0 0 0 0 Kohm
RPM PID 0 881.50 1593.75 1085.25 RPM
SYNC PID NO YES YES YES YES/NO
TP1_LRN_TRIM PID 7.50 7.50 7.50 7.50 DEG
TP2_LRN_TRIM PID 7 7 7 7 DEG
TPMODE PID CT CT CT PT CLOSED/PART/WIDE OPEN THROTTLE
VCTSYS PID OPEN LOOP OPEN LOOP OPEN LOOP OPEN LOOP OPEN LOOP/CLOSED LOOP
VSS PID 0 0 48 km/h (30 MPH) 89 km/h (55 MPH) km/h / MPH
ACTUATORS/OUTPUTS - 5.8L 4V MUSTANG

Actuators/Outputs PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
HFC B18 OFF OFF OFF OFF ON/OFF
FP B19 OFF ON ON ON ON/OFF
EVAPCV B20 0/OFF 0/OFF 0/OFF 0/OFF %/ON-OFF
LFC B34 OFF OFF OFF OFF ON/OFF
SCICP B51 OFF ON ON ON ON/OFF
PCVHC E4 0 0 0 0 %
EVAPCP E49 0 19.03 63.31 27.24 %
HTR11 T24 OFF ON ON ON ON/OFF
O2S11_HTR T24 20.39 40 37.64 36.86 %
HTR21 T35 OFF ON ON ON ON/OFF
O2S21_HTR T35 20.39 38.82 38.43 39.21 %
HTR12 T47 OFF ON ON ON ON/OFF
HTR22 T49 OFF ON ON ON ON/OFF
EGRPCT PID 0 0 32.54 43.52 %
ETC [TAC_PCT] PID 9.80 1.96 3.92 5.49 %
EVAP020C PID NO NO NO NO YES/NO
EVAPSTA PID NOT RUNNING NOT RUNNING NOT RUNNING NOT RUNNING STATUS
FUELSYS PID OPEN LOOP OPEN LOOP CLOSED LOOP CLOSED LOOP OPEN/CLOSED LOOP
IACTRIM PID 0 -0.27 0.01 0.01 NUMERIC VALUE
LONGFT1 PID (I) -20 TO +20 -20 TO +20 -20 TO +20 %
LONGFT2 PID (I) -20 TO +20 -20 TO +20 -20 TO +20 %
MIL PID OFF OFF OFF OFF ON/OFF
O2_DS_DISBL PID YES YES YES NO YES/NO
RO2FT1 PID 0 -1.16 2.29 2.58 %
RO2FT2 PID 0 1.18 2.29 -2.02 %
SHRTFT1 PID (I) -10 TO +10 -10 TO +10 -10 TO +10 %
SHRTFT2 PID (I) -10 TO +10 -10 TO +10 -10 TO +10 %
SPARKADV PID 27.25 15.50 45.50 48.50 DEG
TQ_CNTRL PID NONE REQUESTED NONE REQUESTED NONE REQUESTED NONE REQUESTED STATUS
OTHER - 5.8L 4V MUSTANG

Other PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
VREF B52/B66/E20 5 5 5 5 VOLTS
VPWR B67/B68 VBAT VBAT VBAT VBAT VOLTS
