Fuel Tank Pressure (FTP) Sensor

The in tank FTP sensor or the inline FTP sensor measures the fuel tank pressure.

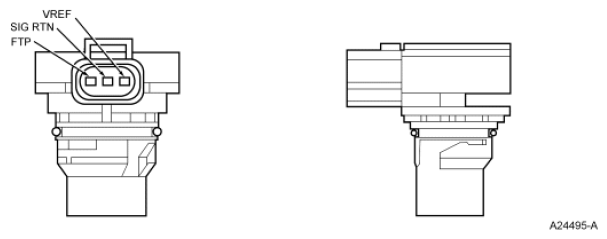

Fig 1: Identifying Fuel Tank Pressure (FTP) Sensor Connector Terminals
G08291341Courtesy of FORD MOTOR CO.

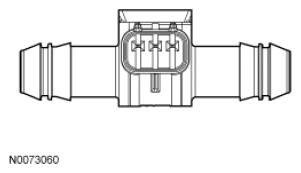

Fig 2: Identifying Inline Fuel Tank Pressure (FTP) Sensor
G08291342Courtesy of FORD MOTOR CO.
