Pinpoint Test KD: Electric Exhaust Gas Recirculation (EEGR) System: Introduction: Notes

This pinpoint test is intended to diagnose the following:

• EEGR system
• EEGR stepper motor (9D475)
• harness circuits: EGRMC1, EGRMC2, EGRMC3, EGRMC4 and VPWR
• powertrain control module (PCM) (12A650)

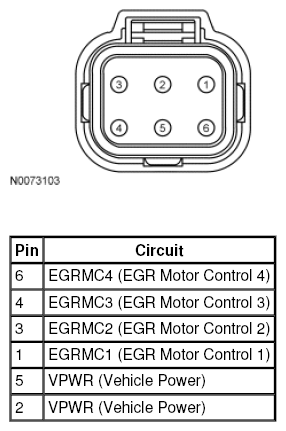

  Fig 1: Identifying Electric Exhaust Gas Recirculation (EEGR) Assembly Connector

  Courtesy of FORD MOTOR CO.
