Audio Unit Antenna Cable: Installation

WARNING: This page is about a different car, the 2014 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The antenna cables are part of the vehicle wiring harness. Because the cables cannot be removed from the harness, this procedure applies to the replacement of the cables only.

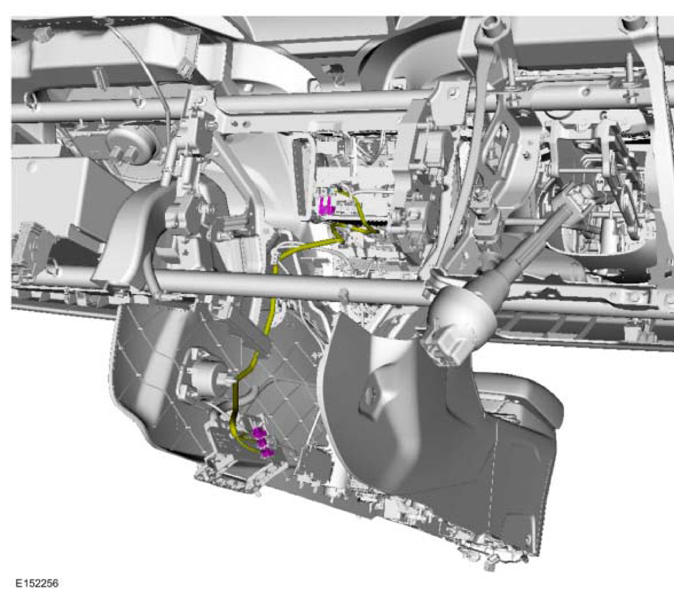

  1. NOTE: Upper antenna cable

    Overlay the new upper antenna cable on the vehicle wiring harness, following the routing of the original cable. Cut the ends off of the existing cable(s).

    G08065700

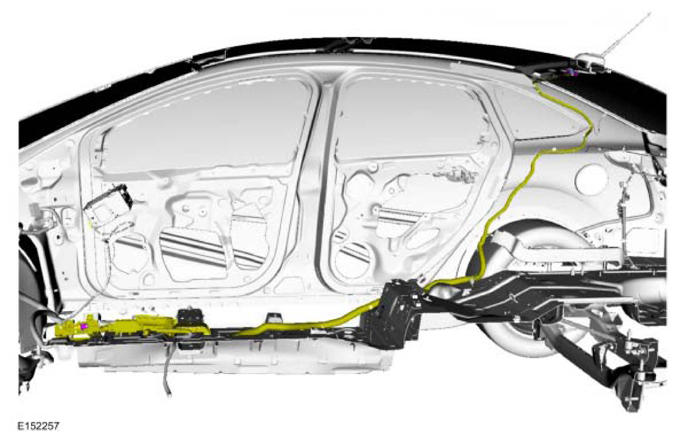

  2. NOTE: Lower antenna cable

    Overlay the new lower antenna cable on the vehicle wiring harness, following the routing of the original cable. Cut the ends off of the existing cable(s).

  3. To install, reverse the removal procedure.
    G08065701
