Front Controls Interface Module (FCIM): Removal

WARNING: This page is about a different car, the 2014 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

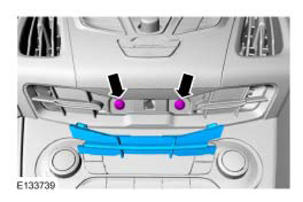

  2. G08065672

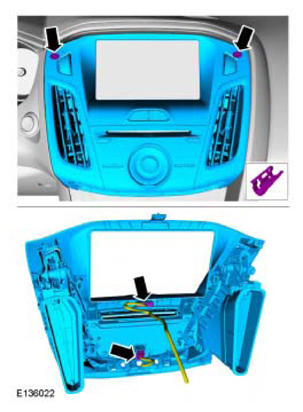

  3. G08065862
  4. NOTE: This step is only necessary when installing a new component.

    Torque  : 12 lb.in (1.3 Nm)

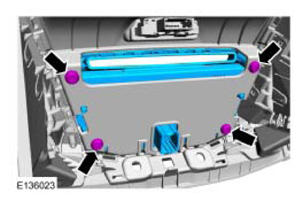

    G08065863
