Global Positioning System Module (GPSM): Removal

WARNING: This page is about a different car, the 2014 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: This step is only necessary when installing a new component.
    NOTE: The PMI  process must begin with the current GPSM  installed. If the current GPSM  does not respond to the diagnostic tool, the tool may prompt for As-Built Data as part of the repair.

    Using a diagnostic scan tool, begin the PMI  process for the GPSM  following the on screen instructions.

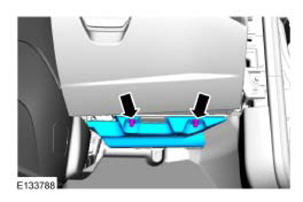

  2. G08065306

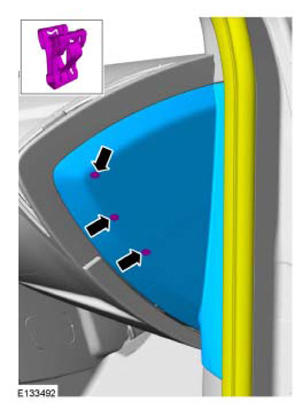

  3. G08065305

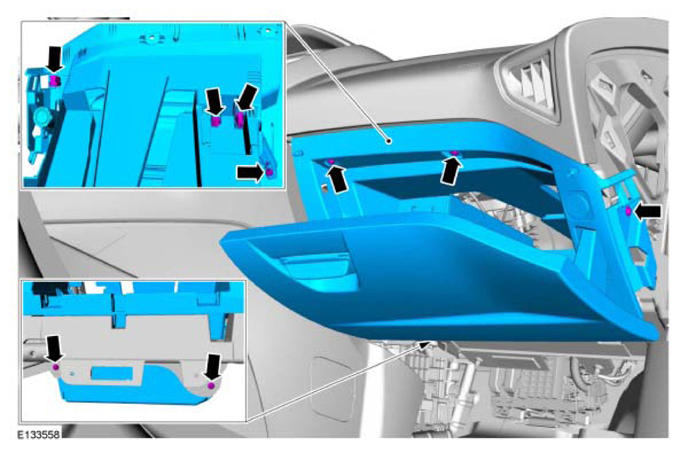

  4. Remove the 5 fasteners, disconnect the electrical connectors from the top of the glove compartment and remove the glove compartment.
    G08065307

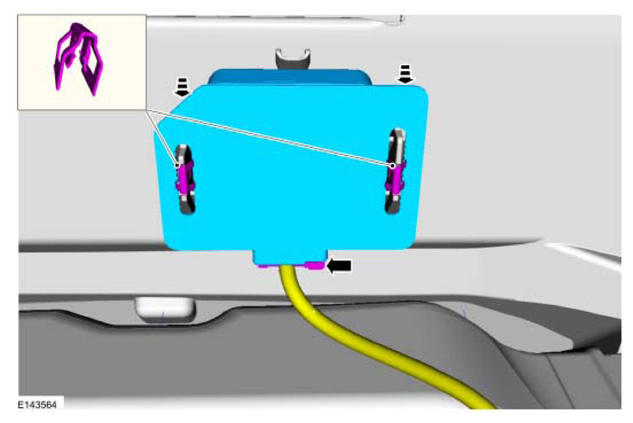

  5. G08065872
