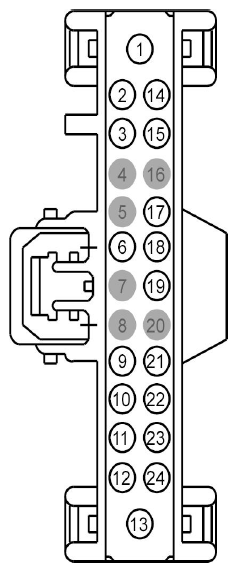

Audio Control Module (ACM) Connector End View (C240A)

Fig 1: Identifying Audio Control Module Connector (C240A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP06 (BN-RD)	14	FUSE OUTPUT OR CIRCUIT BREAKER
2	CME44 (YE-OG)	20	CTRL MOD. - ANTENNA POWER # REAR WINDOW
3	SBP06 (BN-RD)	22	FUSE OUTPUT OR CIRCUIT BREAKER
4	*	*	Not Used
5	*	*	Not Used
6	DME37 (*)	20	CTRL MOD. - AUDIO # EXT. AUX IN
7	*	*	Not Used
8	*	*	Not Used
9	RME09 (BN-YE)	22	CTRL MOD. - AUDIO # SPEAKER LEFT REAR -	SYNC GEN 2
9	RME09 (BN-YE)	18	CTRL MOD. - AUDIO # SPEAKER LEFT REAR -	SYNC GEN 1
10	RME07 (WH-BN)	22	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER)
10	RME07 (WH-BN)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER)
11	RME10 (WH-OG)	22	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER)
11	RME10 (WH-OG)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER)
12	RME12 (BN-BU)	22	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR
12	RME12 (BN-BU)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR
13	GD103 (BK)	14	GROUND - *GENERIC LOGICAL TYPE 3 AUDIO/ENTERT.
14	VDB13 (BU-GY)	22	INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH
15	VDB14 (VT-GY)	22	INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW
16	*	*	Not Used
17	VME37 (BU-RD)	20	CTRL MOD. - AUDIO # EXT. AUX IN L
18	VME38 (BN-RD)	20	CTRL MOD. - AUDIO # EXT. AUX IN R
19	RME17 (BN)	20	CTRL MOD. - AUDIO # RADIO LEFT
20	*	*	Not Used
21	VME09 (BN-GN)	22	CTRL MOD. - AUDIO # SPEAKER LEFT REAR +	SYNC GEN 2
21	VME09 (BN-GN)	18	CTRL MOD. - AUDIO # SPEAKER LEFT REAR +	SYNC GEN 1
22	VME07 (WH)	22	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER)
22	VME07 (WH)	18	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER)
23	VME10 (WH-VT)	22	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER)
23	VME10 (WH-VT)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER)
24	VME12 (BN-WH)	22	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR
24	VME12 (BN-WH)	18	CTRL MOD. - AUDIO # SPEAKER RIGHT REAR
