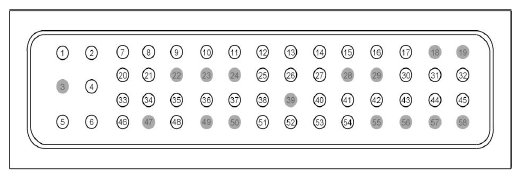

| 1 |
GD120 (BK-GN) |
16 |
GROUND - FENDER FRONT LEFT |
|
| 2 |
GD120 (BK-GN) |
16 |
GROUND - FENDER FRONT LEFT |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
GD120 (BK-GN) |
16 |
GROUND - FENDER FRONT LEFT |
|
| 5 |
CBB08 (GY-YE) |
14 |
FUSE OUTPUT OR CIRCUIT BREAKER |
|
| 6 |
CBB08 (GY-YE) |
14 |
FUSE OUTPUT OR CIRCUIT BREAKER |
|
| 7 |
LE238 (GY) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PRESSURE VOLTAGE REF (C-VREF) |
|
| 8 |
VE203 (VT) |
20 |
CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) |
|
| 9 |
CDC12 (BU-YE) |
20 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) |
|
| 10 |
CH109 (WH-OG) |
20 |
CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH |
|
| 11 |
CDC12 (BU-YE) |
20 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) |
|
| 12 |
VE518 (BN-WH) |
18 |
CTRL MOD. - POWERTRAIN # FUEL PUMP CONTROL MODULE (FPCM) (FPM) |
|
| 13 |
CE903 (BU-OG) |
20 |
SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT) |
|
| 14 |
CE436 (VT-OG) |
20 |
CTRL MOD. -WAKE UP PCM |
|
| 15 |
CE341 (VT-GY) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION SWITCH POSITION RUN (ISP-R) |
|
| 16 |
CCB08 (VT-WH) |
20 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) |
|
| 17 |
CDC12 (BU-YE) |
20 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
CE233 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) |
|
| 21 |
RE407 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
* |
* |
Not Used |
|
| 24 |
* |
* |
Not Used |
|
| 25 |
VE518 (BN-WH) |
20 |
MONITOR - FUEL PUMP (FPM) |
|
| 26 |
VE702 (BU-WH) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) |
|
| 27 |
CE302 (YE-BU) |
20 |
CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY |
|
| 28 |
* |
* |
Not Used |
|
| 29 |
* |
* |
Not Used |
|
| 30 |
CCA29 (GN-RD) |
20 |
SWITCH - BRAKE PEDAL POSITION (BPP) NORMAL OPEN |
|
| 31 |
LE424 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) |
|
| 32 |
SBB10 (YE-RD) |
20 |
FUSE OUTPUT OR CIRCUIT BREAKER |
|
| 33 |
CE470 (WH-BU) |
18 |
CTRL MOD. - POWERTRAIN # SOUND SYMPOSER CONTROL (SSC) |
|
| 34 |
RH107 (GN-BU) |
20 |
CTRL MOD. - AMBIENT TEMP. SENSOR |
|
| 35 |
VH407 (YE-GN) |
20 |
SENSOR - AMBIENT TEMP. |
|
| 36 |
RE136 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION (APP) SENSOR (APPRTN1) |
|
| 37 |
RH108 (BN) |
20 |
CTRL MOD. - SENSOR REFRIGERANT PRESSURE |
|
| 38 |
RE137 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2) |
|
| 39 |
* |
* |
Not Used |
|
| 40 |
CE471 (GN-OG) |
18 |
CTRL MOD. - POWERTRAIN # SOUND SYMPOSER MONITOR (SSM) |
|
| 41 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
| 42 |
CET47 (BU) |
20 |
SWITCH - REVERSE (RS) |
|
| 43 |
CCA29 (GN-RD) |
20 |
SWITCH - BRAKE PEDAL FORCE SIGNAL |
|
| 44 |
CE114 (GN-BU) |
18 |
CTRL MOD. - POWERTRAIN # EVAP CANISTER VENT VALVE |
|
| 45 |
VE208 (WH) |
18 |
CTRL MOD. - POWERTRAIN # FUEL PUMP CONTROL MODULE (FPCM) (FPC) |
|
| 46 |
LE137 (BU-GY) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2) |
|
| 47 |
* |
* |
Not Used |
|
| 48 |
VE731 (YE-GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
|
| 49 |
* |
* |
Not Used |
|
| 50 |
* |
* |
Not Used |
|
| 51 |
LH108 (GY-BN) |
20 |
CTRL MOD. - SENSOR G1876 PRESSURE |
|
| 52 |
VE701 (YE-OG) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION (APP1) |
|
| 53 |
LE136 (GN-OG) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION (APP) SENSOR (APPVREF1) |
|
| 54 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 55 |
* |
* |
Not Used |
|
| 56 |
* |
* |
Not Used |
|
| 57 |
* |
* |
Not Used |
|
| 58 |
* |
* |
Not Used |
|
