Focus S, Standard Trans, Gas
>>
Repair and Diagnosis (Single Page)
>>
Suspension
>>
Wheels & Tire System
>>
Tire Pressure Monitoring System - Except Electric
>>
Description and Operation
>>
Tire Pressure Monitoring System (TPMS) - System Operation and Component Description
>>
System Operation
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

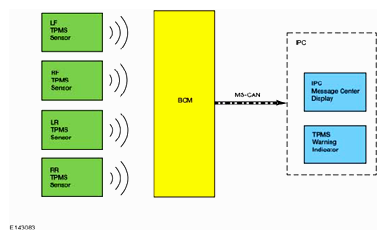

Fig 1: Tire Pressure Monitoring System Communication Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
