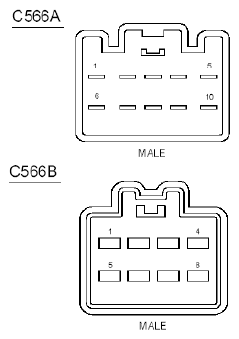

Master window control switch - Without door modules or rear power windows: Terminals
WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT TESTING PROCEDURE CHART
| Circuit to test |
Connect self-powered test light or ohmmeter to terminals |
Move switch to these positions |
A good switch will indicate |
| Right front window circuit |
10 (C566A) and 3 (C566A) |
Up |
Closed circuit |
| 10 (C566A) and 5 (C566A) |
Down |
Closed circuit |
Courtesy of FORD MOTOR CO.
