Master window control switch - Without door modules, with rear power windows: Terminals

WARNING: This page is about a different car, the 2012 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

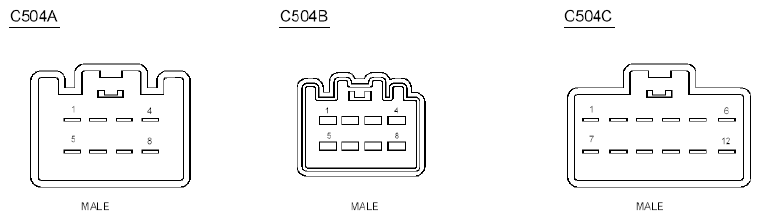

Fig 1: Identifying Master Window Control Switch Connector Terminals - Without Door Modules And With Rear Power Windows
G07918199Courtesy of FORD MOTOR CO.
