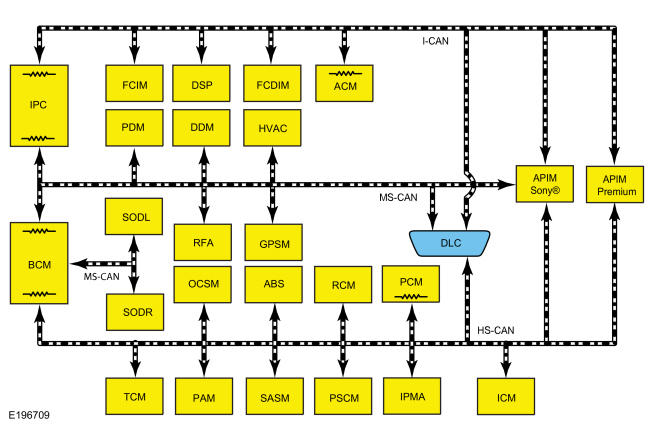

System Diagram
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Module Network Chart
| Module Name | Network Type | Terminating Module |
|---|---|---|
| APIM (if equipped) | HS-CAN | No |
| MS-CAN (Sony® audio system) | No | |
| I-CAN | No | |
| ABS module | HS-CAN | No |
| ACM | I-CAN | Yes |
| DSP (if equipped) | I-CAN | No |
| BCM | HS-CAN | Yes |
| MS-CAN | Yes | |
| DDM (if equipped) | MS-CAN | No |
| FCIM (if equipped with touchscreen) | I-CAN | No |
| FCDIM | I-CAN | No |
| GPSM (if equipped) | MS-CAN | No |
| HVAC module | MS-CAN | No |
| IPC | MS-CAN | Yes |
| I-CAN | Yes | |
| ICM (if equipped) | HS-CAN | No |
| IPMA (if equipped) | HS-CAN | No |
| OCSM | HS-CAN | No |
| PAM (if equipped) | HS-CAN | No |
| PSCM | HS-CAN | No |
| PCM | HS-CAN | Yes |
| PDM (if equipped) | MS-CAN | No |
| RFA module (if equipped) | MS-CAN | No |
| RCM | HS-CAN | No |
| SODL (if equipped) | MS-CAN | No |
| SODR (if equipped) | MS-CAN | No |
| SASM | HS-CAN | No |
| TCM (if equipped) | HS-CAN | No |
