System Diagram
WARNING: This page is about a different variant/trim than selected.

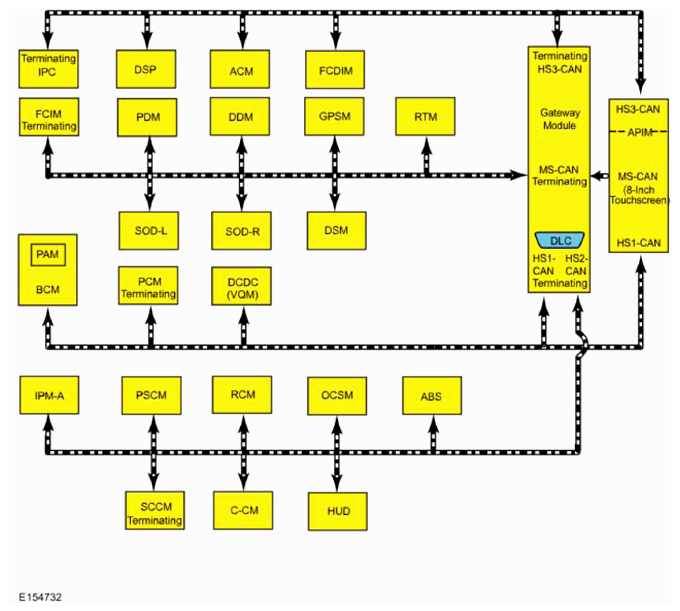

MODULE NETWORK CHART
| Module Name | Network Type |
|---|---|
| APIM (if equipped) | HS1-CAN |
| HS3-CAN | |
| MS-CAN | |
| ABS module | HS2-CAN |
| ACM | HS3-CAN |
| DSP (if equipped) | HS3-CAN |
| BCM | HS1-CAN |
| CCM | HS2-CAN |
| DC /DC (DC/DC) converter control module (if equipped) | HS1-CAN |
| DDM | MS-CAN |
| DSM | MS-CAN |
| FCIM | MS-CAN |
| FCDIM (if equipped) | HS3-CAN |
| GWM | HS1-CAN |
| HS2-CAN | |
| HS3-CAN | |
| MS-CAN | |
| GPSM (if equipped) | MS-CAN |
| OCSM | HS2-CAN |
| HUD module (if equipped) | HS2-CAN |
| IPC | HS3-CAN |
| IPMA (if equipped) | HS2-CAN |
| PAM (if equipped) (Integral with BCM ) | HS1-CAN |
| PSCM | HS2-CAN |
| PCM | HS1-CAN |
| PDM | MS-CAN |
| RTM | MS-CAN |
| RCM | HS2-CAN |
| SODL (if equipped) | MS-CAN |
| SODR (if equipped) | MS-CAN |
| SCCM | HS2-CAN |
