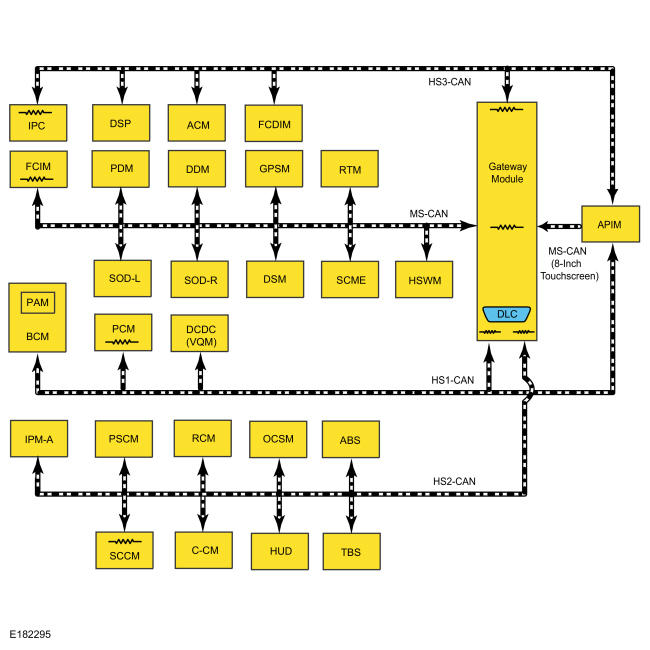

System Diagram
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Module Network Chart
| Module Name | Network Type | Terminating Module |
|---|---|---|
| APIM (if equipped) | HS-CAN1 | No |
| HS-CAN3 | No | |
| MS-CAN | No | |
| ABS module | HS-CAN2 | No |
| ACM | HS-CAN3 | No |
| DSP (if equipped) | HS-CAN3 | No |
| BCM | HS-CAN1 | No |
| CCM | HS-CAN2 | No |
| DC/ DC (DC/DC) converter control module (VQM) (if equipped) | HS-CAN1 | No |
| DDM | MS-CAN | No |
| DSM | MS-CAN | No |
| FCIM | MS-CAN | Yes |
| FCDIM (if equipped) | HS-CAN3 | No |
| GWM | HS-CAN1 | Yes |
| HS-CAN2 | Yes | |
| HS-CAN3 | Yes | |
| MS-CAN | Yes | |
| GPSM (if equipped) | MS-CAN | No |
| OCSM | HS-CAN2 | No |
| HUD module (if equipped) | HS-CAN2 | No |
| HSWM (if equipped) | MS-CAN | No |
| IPC | HS-CAN3 | Yes |
| IPMA (if equipped) | HS-CAN2 | No |
| PAM (if equipped) (Integral with BCM) | HS-CAN1 | No |
| PSCM | HS-CAN2 | No |
| PCM | HS-CAN1 | Yes |
| PDM | MS-CAN | No |
| RTM | MS-CAN | No |
| RCM | HS-CAN2 | No |
| SODL (if equipped) | MS-CAN | No |
| SODR (if equipped) | MS-CAN | No |
| SCME (if equipped) | MS-CAN | No |
| SCCM | HS-CAN2 | Yes |
| Tracking and Blocking System (TBS) Module (Brazil only) | HS-CAN2 | No |
