Head Up Display (HUD) Module: Removal
WARNING:
This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
1.

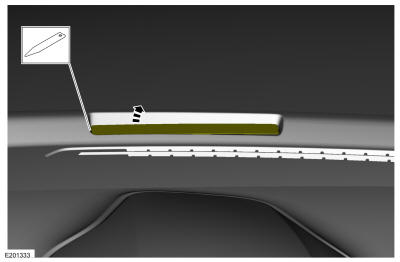

Using a non-marring tool, release and position the HUD.
Courtesy of FORD MOTOR COMPANY
2.

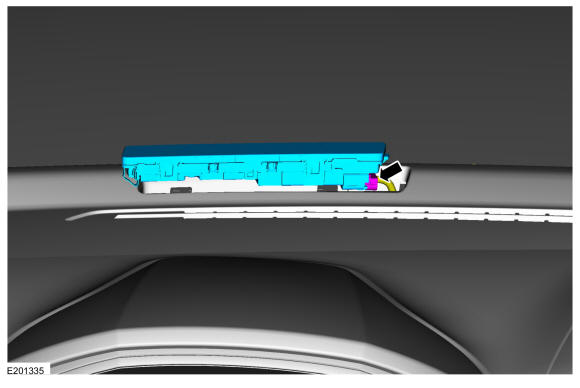

Disconnect and remove the HUD.
Courtesy of FORD MOTOR COMPANY
