Gateway Module A (GWM): Removal

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Upload the GWM configuration to the scan tool by following the scan tool on-screen instructions.

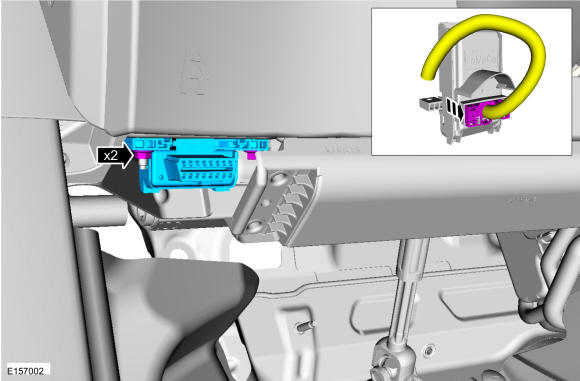

Remove the nuts and the GWM. Disconnect the electrical connector.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
