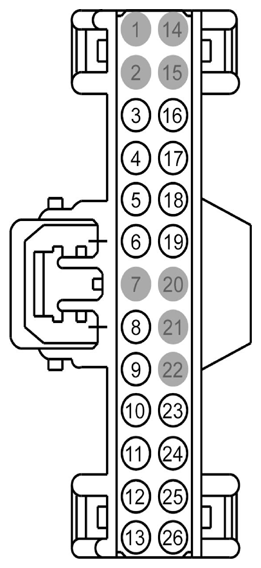

| 1 |
* |
* |
Not Used |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
CPW47 (VT-OG) |
22 |
CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN |
|
| 4 |
CPR92 (BU-GY) |
22 |
SWITCH - CONVERTIBLE TOP AJAR UP |
|
| 5 |
CPR24 (GN) |
26 |
SWITCH - CONVERTIBLE ROOF UP |
|
| 6 |
CPR19 (YE-BU) |
18 |
CTRL MOD. - ELECTRONIC RELAY CONVERTIBLE ROOF UP |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
CPL60 (BN-YE) |
22 |
SWITCH - DECKLID RELEASE |
|
| 9 |
CLN51 (BU) |
26 |
ALARM ZONE3 - RED |
|
| 9 |
CLN51 (OG) |
26 |
ALARM ZONE3 - RED |
|
| 10 |
CLN52 (GN) |
26 |
ALARM ZONE3 - GREEN |
|
| 11 |
CLN44 (OG) |
26 |
ALARM ZONE1 - RED |
|
| 12 |
CLN45 (GN) |
26 |
ALARM ZONE1 - GREEN |
|
| 13 |
CLN46 (BU) |
26 |
ALARM ZONE1 - BLUE |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
CPW53 (YE-OG) |
22 |
CTRL MOD. - WINDOW MOTOR REAR RIGHT # DOWN |
|
| 17 |
CPR93 (YE-GY) |
22 |
SWITCH - CONVERTIBLE TOP AJAR DOWN |
|
| 18 |
CPR23 (BU) |
26 |
SWITCH - CONVERTIBLE ROOF DOWN |
|
| 19 |
CPR18 (WH-VT) |
18 |
CTRL MOD. - ELECTRONIC RELAY CONVERTIBLE ROOF DOWN |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
* |
* |
Not Used |
|
| 23 |
CLN53 (BU) |
26 |
ALARM ZONE3 - BLUE |
|
| 24 |
CLN48 (OG) |
26 |
ALARM ZONE2 - RED |
|
| 25 |
CLN49 (GN) |
26 |
ALARM ZONE2 - GREEN |
|
| 26 |
CLN50 (BU) |
26 |
ALARM ZONE2 - BLUE |
|
