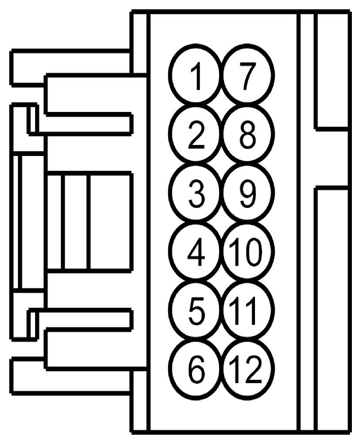

Front Display Interface Module (FDIM) Connector End View (C2123)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP14 (BN-RD) | 22 | FUSE - 14 OR CIRCUIT BREAKER | with navigation |
| 2 | DMP19 (*) | 22 | CAMERA - VIDEO DISPLAY MIRROR | with navigation |
| 3 | VMP19 (WH-GN) | 22 | CAMERA - VIDEO DISPLAY MIRROR + | with navigation |
| 4 | CMN26 (BU-OG) | 22 | DISPLAY RX | with navigation |
| 4 | VDB06 (GY) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | w/o navigation |
| 5 | VDB07 (VT) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | w/o navigation |
| 5 | CMN23 (WH-BU) | 22 | DISPLAY ENABLE | with navigation |
| 6 | VMN20 (BN) | 26 | CTRL MOD. - DVD VIDEO + | with navigation |
| 7 | GD115 (BK-GY) | 20 | GROUND - CROSS CAR BEAM # 2ND STUD | with navigation |
| 8 | GD116 (BK-VT) | 22 | GROUND - CROSS CAR BEAM # 3RD STUD | w/o navigation |
| 9 | RMP19 (BN-VT) | 22 | CAMERA - VIDEO DISPLAY MIRROR - | with navigation |
| 10 | CMN24 (GY-VT) | 22 | DISPLAY TX | with navigation |
| 11 | DMN20 (*) | 22 | CTRL MOD. - DVD VIDEO | with navigation |
| 12 | RMN20 (WH) | 26 | CTRL MOD. - DVD VIDEO - | with navigation |
| 12 | SBP14 (BN-RD) | 22 | FUSE - 14 OR CIRCUIT BREAKER | w/o navigation |
| Available Pigtail Kits | |

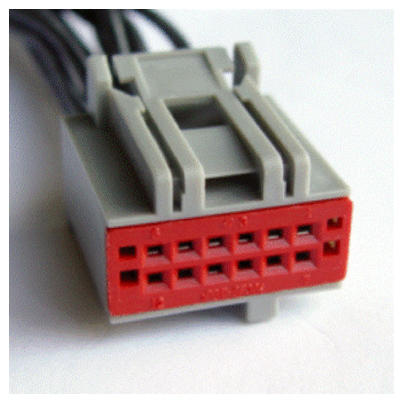

| Pigtail Kit Part Number WPT-949 | Service Part Number: 3U2Z-14S411-BMAB Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses
|

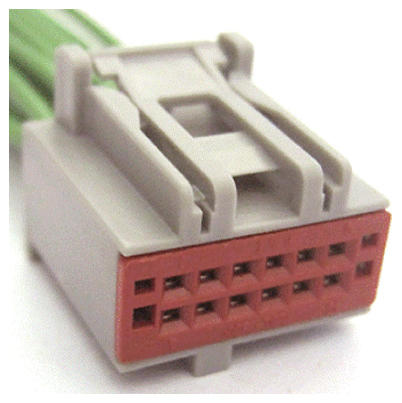

| Pigtail Kit Part Number WPT-760 | Service Part Number: 3U2Z-14S411-BMAA Gauge: 18 Pin material: Tin Cavities: 12 Vehicle Uses
|
