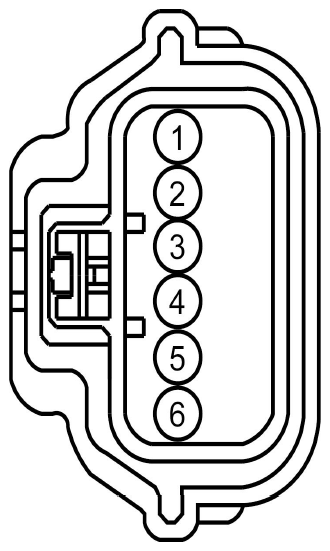

Occupant Classification Sensor Module (OCSM) Connector End View (C3043)

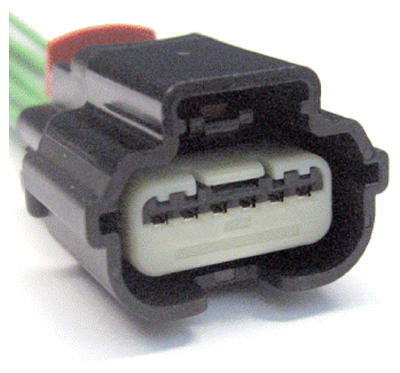

Fig 1: Identifying Occupant Classification Sensor Module (OCSM) Connector (C3043)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP46 (WH-BU)	22	FUSE - 46 OR CIRCUIT BREAKER
2	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
3	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
4	GD138 (BK-WH)	22	GROUND - PILLAR A RIGHT
5	LR142 (YE-BU)	22	CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD
6	VR210 (BU-BN)	22	SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD

Available Pigtail Kits
Pigtail Kit Part Number WPT-929	Service Part Number: 9U2Z-14S411-BA  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Sensor - Acceleration Pedal Position Switch - Door Ajar/Interior Lamp
