Frame Lifting Points

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

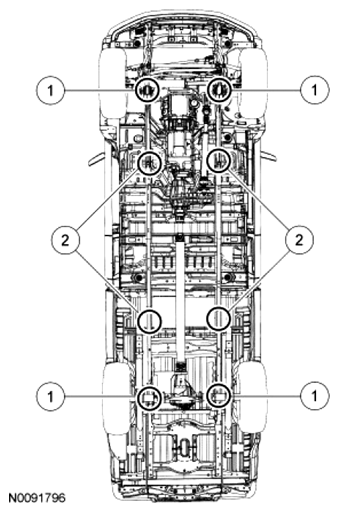

Fig 1: Identifying Frame Lifting Points
G06776286Courtesy of FORD MOTOR CO.
Item Description
1 In-ground axle lift hoist lifting locations
2 Above-ground lifting hoist locations
