Quarter Panel Speaker: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH side shown, LH side similar.

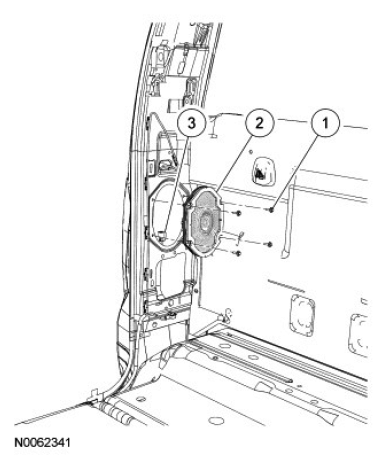

Fig 1: Identifying Quarter Panel Speaker With Screws And Electrical Connector

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707628-S	Quarter panel speaker screws (4 required)
2	18808	Quarter panel speaker
3	-	Quarter panel speaker electrical connector (part of 14A005)
