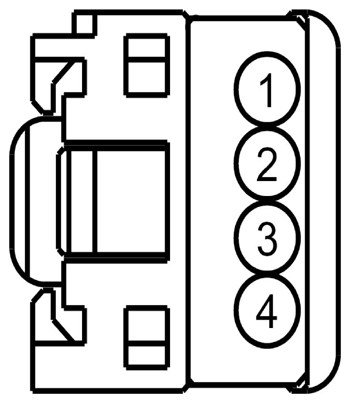

Audio Input Jack Connector End View (C2362)

Fig 1: Identifying Audio Input Jack Connector (C2362)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	VME46 (GN)	26	JACK - AUDIO # EXT. AUX IN RIGHT (+)
2	RME46 (WH)	26	JACK - AUDIO # EXT. AUX IN RIGHT (-)
3	RME45 (YE)	26	JACK - AUDIO # EXT. AUX IN LEFT (-)
4	VME45 (BU)	26	JACK - AUDIO # EXT. AUX IN LEFT (+)

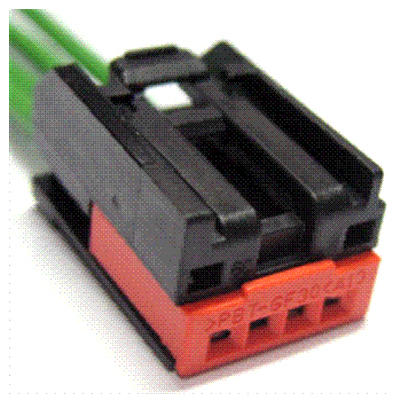

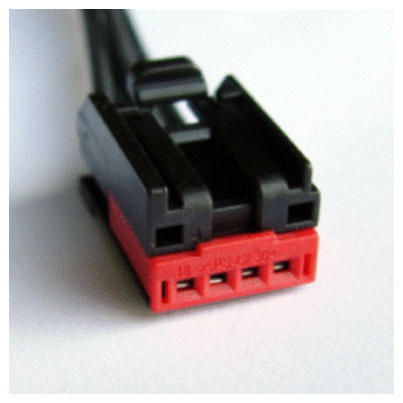

Available Pigtail Kits
Pigtail Kit Part Number WPT-465	Service Part Number: 3U2Z-14S411-PRA Gauge: 18 Pin material: Tin Cavities: 4 Vehicle Uses Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)
Pigtail Kit Part Number WPT-1139	Service Part Number: 3U2Z-14S411-PRC Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Connector - Audio Input Lamp - CHMSL (Center High Mount Stop Lamp) Module - Anti-theft Module - Power Moonroof Sensor - Steering Wheel Position Switch - 4x4 Control Switch - Clutch Pedal Position Switch - Deck Lid/Lift Gate Ajar Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Lift Gate Glass Ajar Switch - Message Center Switch - Moon Roof/Sun Roof Transceiver - Passive Anti-Theft (PATS)
