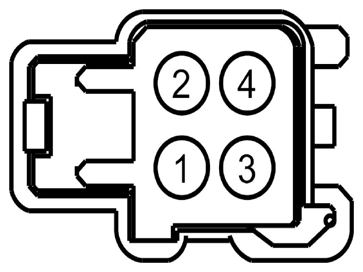

Center Console Lamp Assembly Connector End View (C3349)

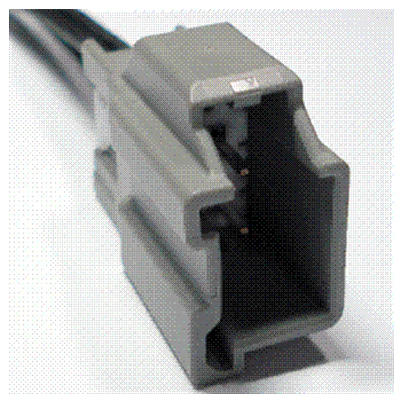

Fig 1: Identifying Center Console Lamp Assembly Connector (C3349)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLN48 (OG)	26	ALARM ZONE2 - RED
2	RLN44 (BN)	22	LED RETURN
3	CLN49 (GN)	22	ALARM ZONE2 - GREEN
4	CLN50 (BU)	22	ALARM ZONE2 - BLUE

Available Pigtail Kits
Pigtail Kit Part Number WPT-1076	Service Part Number: 3U2Z-14S411-BUB  Gauge: 14  Pin material: Tin (greased)  Cavities: 4  Vehicle Uses Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top
