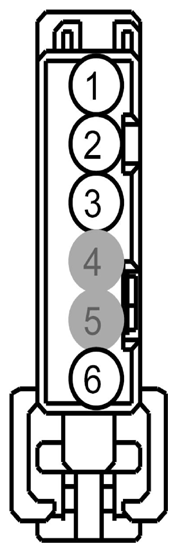

Global Positioning System Module (GPSM) Connector End View (C2398)

Fig 1: Identifying Global Positioning System Module (GPSM) Connector (C2398)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP14 (BN-RD)	22	FUSE - 14 OR CIRCUIT BREAKER
2	VDB06 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
3	VDB07 (VT)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
4	*	*	Not Used
5	*	*	Not Used
6	GD115 (BK-GY)	20	GROUND - CROSS CAR BEAM # 2ND STUD

Available Pigtail Kits

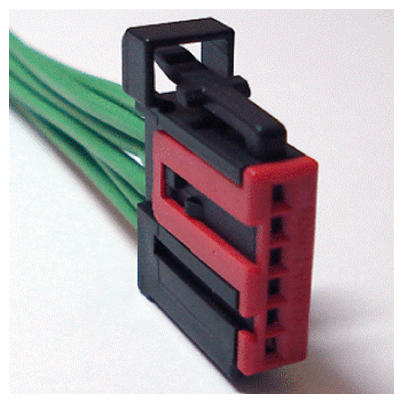

Pigtail Kit Part Number WPT-873	Service Part Number: 6U2Z-14S411-LA  Gauge: 20  Pin material: Tin  Cavities: 6  Vehicle Uses Mirror - Sideview Sensor - Throttle Position Switch - A/C Compressor Clutch Cycling

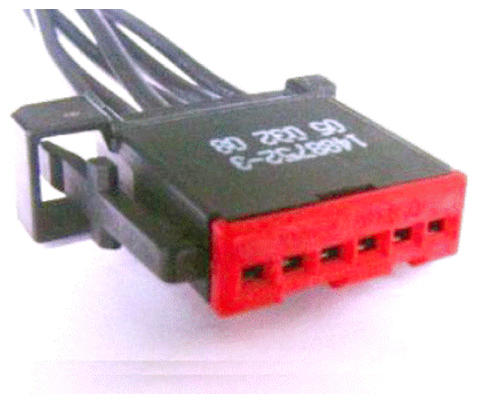

Pigtail Kit Part Number WPT-958	Service Part Number: 6U2Z-14S411-LB  Gauge: 18 20  Pin material: Tin & Silver  Cavities: 6  Vehicle Uses Antenna - GPS Module - Global Positioning
