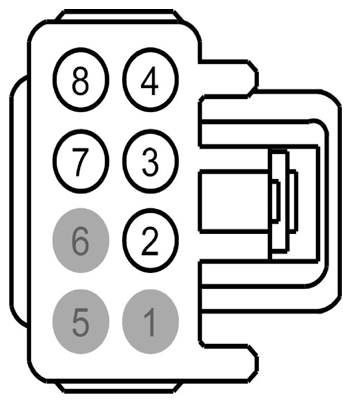

Lumbar Control Switch, Left Front Connector End View (C361)

Fig 1: Identifying Lumbar Control Switch (Left Front) Connector (C361)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	GD133 (BK)	14	GROUND - PILLAR A LEFT
3	CPS64 (BN-VT)	14	DRIVERS SEAT LUMBAR MOTOR
4	SBB32 (VT-RD)	14	FUSE - 32 OR CIRCUIT BREAKER
5	*	*	Not Used
6	*	*	Not Used
7	CPS65 (WH-GN)	14	DRIVERS SEAT LUMBAR MOTOR
8	GD133 (BK)	14	GROUND - PILLAR A LEFT

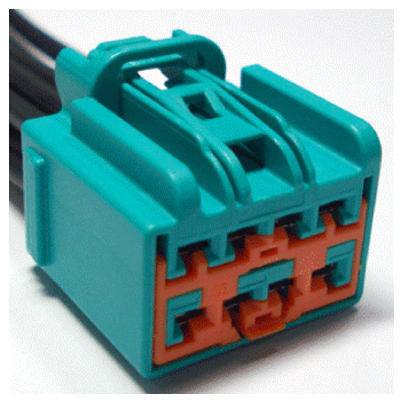

Available Pigtail Kits

Pigtail Kit Part Number WPT-1031

Service Part Number: 3U2Z-14S411-PPB  Gauge: 10 12  Pin material: Tin & Silver  Cavities: 8  Vehicle Uses Switch - Adjustable Pedal Switch - Convertable Top Switch - Door Lock (Cargo) Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Moon Roof/Sun Roof Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat Lumbar Switch - Third Row Power Folding Seat
