Master Window Control Switch Connector End View (C504)

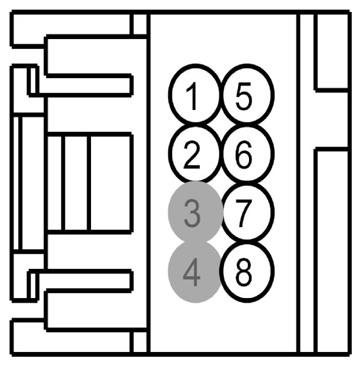

Fig 1: Identifying Master Window Control Switch Connector (C504)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP41 (BU)	20	FUSE - 41 OR CIRCUIT BREAKER
2	CPW11 (BU-GY)	20	SWITCH - POWER WINDOW DRIVER # DRIVER UP
3	*	*	Not Used
4	*	*	Not Used
5	CPW12 (GN-OG)	20	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN
6	CPW13 (BN-YE)	20	SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP
7	CPW10 (YE-VT)	20	SWITCH - POWER WINDOW DRIVER # DRIVER DOWN
8	GD133 (BK)	20	GROUND - PILLAR A LEFT

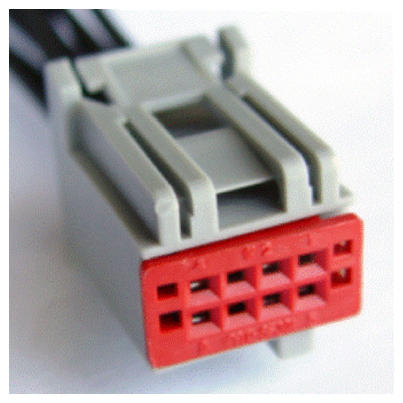

Available Pigtail Kits
Pigtail Kit Part Number WPT-998	Service Part Number: 3U2Z-14S411-DLB  Gauge: 18  Pin material: Silver  Cavities: 8  Vehicle Uses Radio Radio - Amplifier Switch - Fuel Filler Door Switch - Message Center Switch - Power Mirror Switch - Power Window - Driver Switch - Seat Lumbar Switch - Steering Column Tilt/Telescope Switch - Upfitter
Pigtail Kit Part Number WPT-219	Service Part Number: 3U2Z-14S411-DLA  Gauge: 18  Pin material: Tin  Cavities: 8  Vehicle Uses Radio Radio - Amplifier Switch - Fuel Filler Door Switch - Message Center Switch - Power Mirror Switch - Power Window Switch - Seat Lumbar Switch - Steering Column Tilt/Telescope
