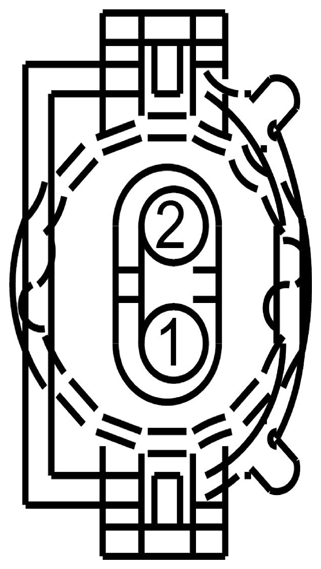

Output Shaft Speed (OSS) Sensor Connector End View (C193)

Fig 1: Identifying Output Shaft Speed (OSS) Sensor Connector (C193)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VET26 (BN-GN)	20	SENSOR - OUTPUT SHAFT SPEED (OSS)
2	RE406 (GY-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIGRTN)

Available Pigtail Kits

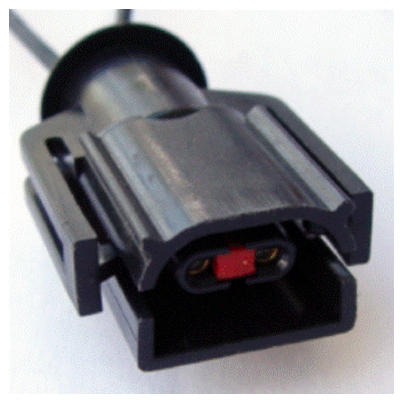

Pigtail Kit Part Number WPT-589	Service Part Number: 3U2Z-14S411-VBA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Sensor - Output Shaft Speed Sensor - Speed Sensor - Turbine Shaft Speed Solenoid - Air Suspension

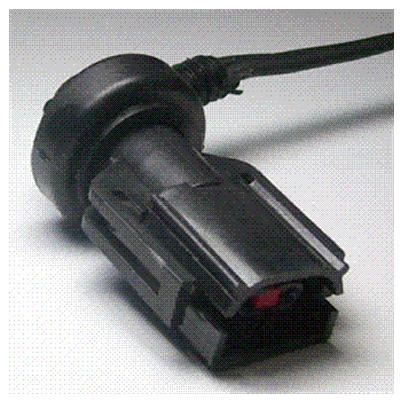

Pigtail Kit Part Number WPT-1300	Service Part Number: 3U2Z-14S411-VBB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Sensor - Output Shaft Speed Sensor - Speed Sensor - Turbine Shaft Speed Solenoid - Air Suspension
