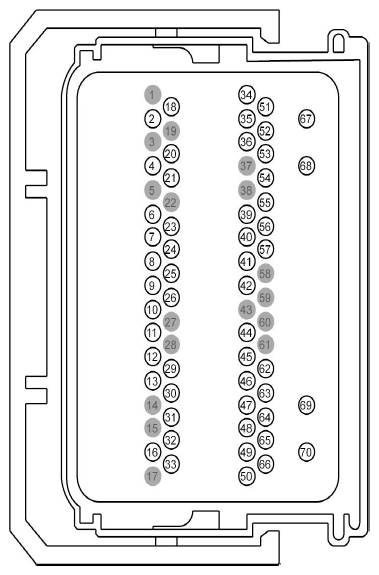

| 1 |
* |
* |
Not Used |
|
| 2 |
CE421 (VT) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11) SOLENOID |
5.0L |
| 3 |
* |
* |
Not Used |
|
| 4 |
CE321 (YE) |
18 |
CTRL MOD. - POWERTRAIN # POS. CRANKCASE VENTIL. HEATER CONTROL (PCVHC) |
5.8L |
| 5 |
* |
* |
Not Used |
|
| 6 |
RE323 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST OR UNIQUE [KS1-] |
|
| 7 |
VE801 (VT-OG) |
20 |
SENSOR - KNOCK 1ST OR UNIQUE [KS1+] |
|
| 8 |
RE134 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) |
|
| 9 |
LE134 (YE) |
18 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) |
|
| 10 |
VE819 (GN-VT) |
18 |
SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2) |
|
| 11 |
DE135 (BK) |
20 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (SHDRTN) |
|
| 12 |
RE135 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP-) |
5.0L |
| 12 |
RE135 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP-) |
5.8L |
| 13 |
VE711 (YE-VT) |
18 |
SENSOR - CRANKSHAFT POSITION (CKP+) |
5.8L |
| 13 |
VE711 (YE-VT) |
20 |
SENSOR - CRANKSHAFT POSITION (CKP+) |
5.0L |
| 14 |
* |
* |
Not Used |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
CE442 (YE-GY) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 21 (VCT21) |
5.0L |
| 17 |
* |
* |
Not Used |
|
| 18 |
CE307 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP5F) |
5.8L |
| 18 |
CE305 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3F) |
5.0L |
| 19 |
* |
* |
Not Used |
|
| 20 |
LE423 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |
5.8L |
| 21 |
VE713 (GN-OG) |
18 |
SENSOR - DELTA PRESSURE FEEDBACK EGR (DPFE) |
5.8L |
| 22 |
* |
* |
Not Used |
|
| 23 |
VE727 (BU-BN) |
18 |
FUEL RAIL PRESSURE (FRP) |
5.8L |
| 24 |
CMC24 (GY) |
18 |
SWITCH - OIL PRESSURE |
5.8L |
| 25 |
LE142 (GN-WH) |
20 |
CTRL MOD. - POWERTRAIN # ENGINE OIL QUALITY SENSOR |
5.0L |
| 26 |
VE728 (GN) |
18 |
FUEL RAIL TEMPERATURE (FRT) |
5.8L |
| 27 |
* |
* |
Not Used |
|
| 28 |
* |
* |
Not Used |
|
| 29 |
RE429 (GY-OG) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) |
5.8L |
| 29 |
RE429 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) |
5.0L |
| 30 |
VE712 (BU-GY) |
20 |
SENSOR - CYLINDER HEAD TEMPERATURE (CHT) |
5.0L |
| 30 |
VE712 (BU-GY) |
18 |
SENSOR - CYLINDER HEAD TEMPERATURE (CHT) |
5.8L |
| 31 |
RE141 (BN-GN) |
18 |
CTRL MOD. - POWERTRAIN # ENGINE COOLANT TEMPERATURE SENSOR |
5.8L |
| 32 |
RE405 (GN-WH) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
|
| 33 |
CE306 (GN-VT) |
20 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4G) |
5.8L |
| 33 |
CE309 (YE-GY) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 7 (COP7G) |
5.0L |
| 34 |
CE307 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP5B) |
5.0L |
| 34 |
CE305 (BU-OG) |
20 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3B) |
5.8L |
| 35 |
CE133 (VT-WH) |
18 |
CTRL MOD. - POWERTRAIN # ELECTRONIC VACUUM REGULATOR (EVR) |
5.8L |
| 36 |
LE111 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) |
5.0L |
| 37 |
* |
* |
Not Used |
|
| 38 |
* |
* |
Not Used |
|
| 39 |
VE818 (BN) |
18 |
SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1) |
|
| 40 |
LE329 (BU) |
18 |
CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) |
5.8L |
| 41 |
VE736 (WH-GN) |
20 |
SENSOR - CAMSHAFT POSITION BANK 1 (CMP11) |
5.0L |
| 42 |
VE738 (YE-BU) |
20 |
SENSOR - CAMSHAFT POSITION BANK 2 (CMP21) |
5.0L |
| 43 |
* |
* |
Not Used |
|
| 44 |
RE324 (BN-GN) |
20 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND [KS2-] |
|
| 45 |
VE802 (BN-BU) |
20 |
SENSOR - KNOCK 2ND KS2+] |
|
| 46 |
VE706 (BN-BU) |
18 |
SENSOR - CAMSHAFT POSITION BANK 1 IN+EX/IN (CMP11) |
5.8L |
| 46 |
VE706 (BN-BU) |
20 |
SENSOR - CAMSHAFT POSITION BANK 1 IN+EX/IN (CMP12) |
5.0L |
| 47 |
VE707 (GN-VT) |
20 |
SENSOR - CAMSHAFT POSITION BANK 2 IN+EX/IN (CMP22) |
5.0L |
| 48 |
RE429 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN2) (CAMSHAFT POSITION) |
5.0L |
| 49 |
CE113 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # EVAPORATIVE EMISSION (EVAP) PURGE VALVE (EVAPCP) |
5.8L |
| 49 |
CE113 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # EVAPORATIVE EMISSION (EVAP) PURGE VALVE (EVAPCP) |
5.0L |
| 50 |
CE306 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4C) |
5.0L |
| 50 |
CE309 (YE-GY) |
20 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 7 (COP7C) |
5.8L |
| 51 |
CE304 (YE-BU) |
20 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D) |
5.8L |
| 51 |
CE310 (BU-BN) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 8 (COP8D) |
5.0L |
| 52 |
CE304 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2H) |
5.0L |
| 52 |
CE310 (BU-BN) |
20 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 8 (COP8H) |
5.8L |
| 53 |
CE205 (GN-BU) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ1) |
|
| 54 |
CE212 (VT-OG) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 8 (INJ8) |
5.8L |
| 54 |
CE206 (GY-YE) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2) |
5.0L |
| 55 |
CE207 (VT-GY) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3) |
5.0L |
| 55 |
CE209 (BN) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ5) |
5.8L |
| 56 |
CE422 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 12 (VCT12) |
5.0L |
| 57 |
CE443 (BN-VT) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 22 (VCT22) |
5.0L |
| 58 |
* |
* |
Not Used |
|
| 59 |
* |
* |
Not Used |
|
| 60 |
* |
* |
Not Used |
|
| 61 |
* |
* |
Not Used |
|
| 62 |
CE211 (GY-BN) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 7 (INJ7) |
5.8L |
| 62 |
CE208 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ4) |
5.0L |
| 63 |
CE209 (BN) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ5) |
5.0L |
| 63 |
CE207 (VT-GY) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3) |
5.8L |
| 64 |
CE210 (GN-WH) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ6) |
|
| 65 |
CE208 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ4) |
5.8L |
| 65 |
CE211 (GY-BN) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 7 (INJ7) |
5.0L |
| 66 |
CE212 (VT-OG) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 8 (INJ8) |
5.0L |
| 66 |
CE206 (GY-YE) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2) |
5.8L |
| 67 |
CE426 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) |
|
| 68 |
CE412 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) |
|
| 69 |
CE308 (VT-BN) |
20 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP6E) |
5.8L |
| 69 |
CE308 (VT-BN) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP6E) |
5.0L |
| 70 |
CE303 (WH-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A) |
|
