Seat Control Switch, Driver Side Front Connector End View (C360)

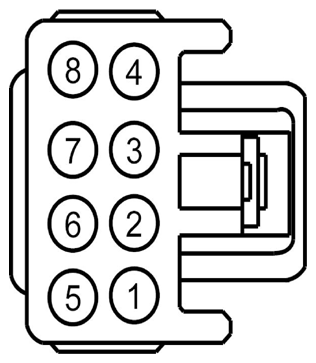

Fig 1: Identifying Seat Control Switch (Driver Side Front) Connector (C360)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS24 (GY)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT DOWN
2	GD133 (BK)	14	GROUND - PILLAR A LEFT
3	CPS28 (GN)	14	SWITCH - SEAT ADJUST. DRIVER REARWARD
4	SBB32 (VT-RD)	14	FUSE - 32 OR CIRCUIT BREAKER
5	CPS26 (YE-BU)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN
6	CPS23 (GN-VT)	14	SWITCH - SEAT ADJUST. DRIVER FORWARD
7	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP
8	CPS25 (WH-VT)	14	SWITCH - SEAT ADJUST. DRIVER FRONT HEIGHT UP

Available Pigtail Kits

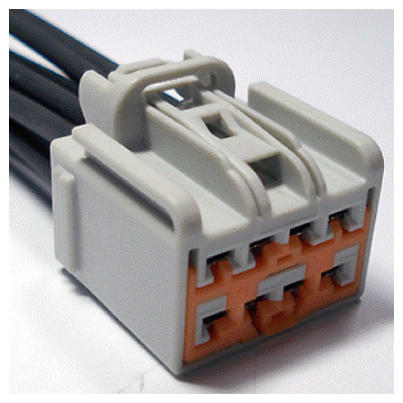

Pigtail Kit Part Number WPT-1043

Service Part Number: 3U2Z-14S411-UZB  Gauge: 12  Pin material: Tin  Cavities: 8  Vehicle Uses Connector - Inline Switch - Door Lock (LH) Switch - Heated Seat - RH - Front Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat (driver) Switch - Seat (passenger) Switch - Seat Lumbar Switch - Third Row Power Folding Seat
