Seat Control Switch, Passenger Side Front Connector End View (C3190)

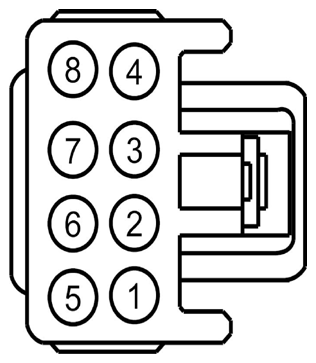

Fig 1: Identifying Seat Control Switch (Passenger Side Front) Connector (C3190)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS35 (VT-GN)	14	SWITCH - SEAT ADJUST. FRONT PASSENGER FRONT HEIGHT UP
2	GD139 (BK-YE)	14	GROUND - PILLAR A RIGHT # 2ND STUD
3	CPS38 (GN-BU)	14	SWITCH - SEAT ADJUST. FRONT PASSENGER REARWARD
4	SBB31 (WH-RD)	14	FUSE - 31 OR CIRCUIT BREAKER
5	CPS37 (WH-BU)	14	SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT UP
6	CPS33 (WH)	14	SWITCH - SEAT ADJUST. FRONT PASSENGER FORWARD
7	CPS36 (YE-GY)	14	SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT DOWN
8	CPS34 (GY-BU)	14	SWITCH - SEAT ADJUST. FRONT PASSENGER FRONT HEIGHT DOWN

Available Pigtail Kits

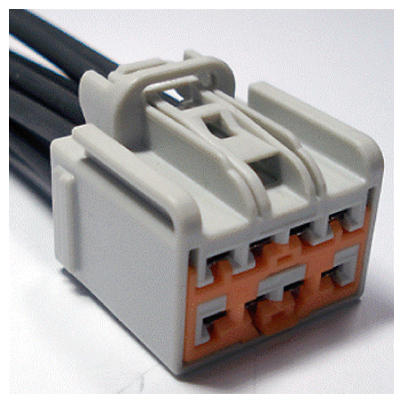

Pigtail Kit Part Number WPT-1043

Service Part Number: 3U2Z-14S411-UZB  Gauge: 12  Pin material: Tin  Cavities: 8  Vehicle Uses Connector - Inline Switch - Door Lock (LH) Switch - Heated Seat - RH - Front Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear Switch - Seat (driver) Switch - Seat (passenger) Switch - Seat Lumbar Switch - Third Row Power Folding Seat
