Throttle Position (TP) Sensor Connector End View (C189)

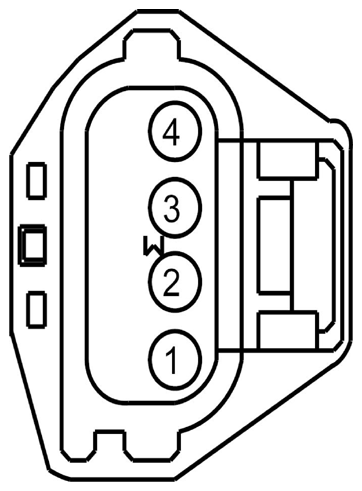

Fig 1: Identifying Throttle Position (TP) Sensor Connector (C189)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE819 (GN-VT)	18	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2)
2	LE134 (YE)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)
3	RE134 (BU-OG)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)
4	VE818 (BN)	18	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1)

Available Pigtail Kits

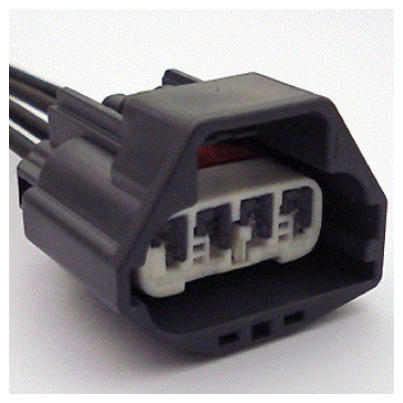

Pigtail Kit Part Number WPT-992	Service Part Number: 3U2Z-14S411-UB  Gauge: 14  Pin material: Tin (greased)  Cavities: 4  Vehicle Uses Motor - Electronic Throttle Control (ETC) Sensor - Fuel Rail Temperature Sensor - Fuel Tank Pressure Transducer Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Throttle Position

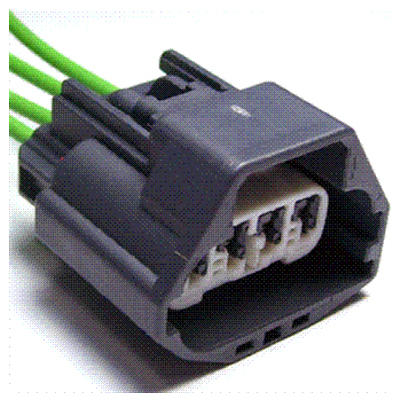

Pigtail Kit Part Number WPT-1293	Service Part Number: 3U2Z-14S411-UC  Gauge: 16  Pin material: Silver  Cavities: 4  Vehicle Uses Control - Electronic Throttle Sensor - Fuel Rail Temperature Sensor - Fuel Tank Pressure Transducer Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Throttle Position
