Vehicle Dynamics Module (VDM) Connector End View (C4396B)

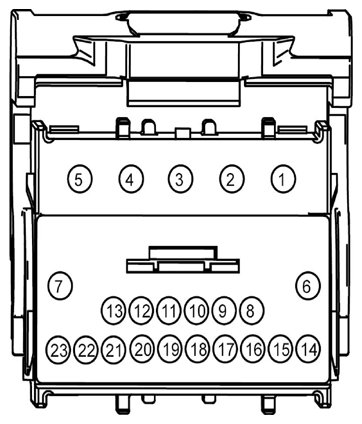

Fig 1: Identifying Vehicle Dynamics Module (VDM) Connector (C4396B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RCD03 (VT-BN)	20	CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT -
2	*	*	Not Used
3	*	*	Not Used
4	CCD04 (GY-YE)	20	CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT +
5	RCD04 (BU-OG)	20	CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT -
6	CCD03 (WH-BU)	20	CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT +
7	CBP32 (GN-VT)	16	FUSE - 32 OR CIRCUIT BREAKER
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	*	*	Not Used
