Reductant Heater and Sender Assembly

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

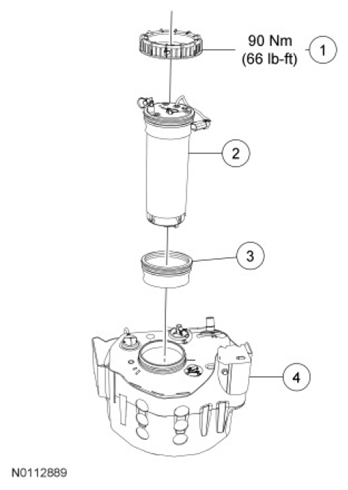

Fig 1: Exploded View Of Reductant Heater And Sender Assembly Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5L228	Reductant heater and sender assembly lock ring
2	5J225	Reductant heater and sender assembly
3	5L229	Reductant heater and sender assembly seal
4	5J250	Reductant tank
